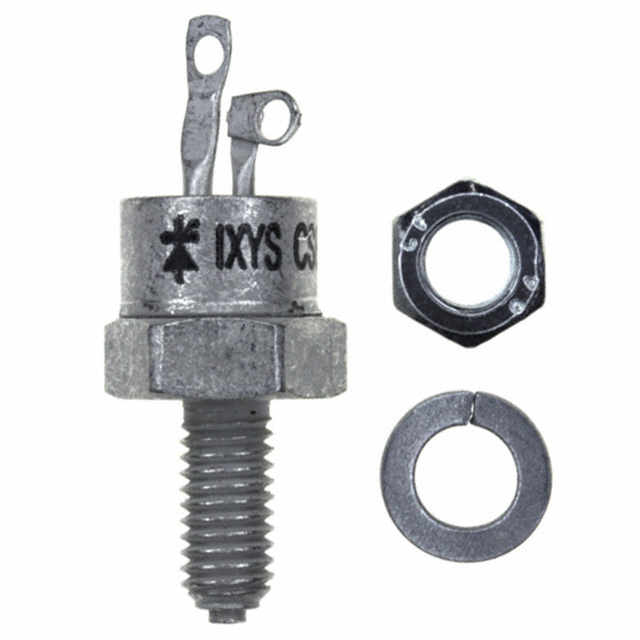

IXYS CS8-12IO2 is a standard recovery Silicon Controlled Rectifier (SCR) designed for demanding power control applications. This component features a 1.2 kV repetitive peak off-state voltage (VDRM) and a continuous on-state current (IT(AV)) rating of 16 A, with an RMS on-state current (IT(RMS)) of 25 A. The non-repetitive surge current (ITSM) is rated at 250 A at 50 Hz and 270 A at 60 Hz. With a gate trigger voltage (VGT) of 2.5 V maximum and a gate trigger current (IGT) of 30 mA maximum, it offers reliable triggering characteristics. The device exhibits a low on-state voltage drop (VTM) of 1.6 V maximum and an off-state current (IDRM) of 3 mA maximum. Designed for chassis mounting via a stud, its TO-64 package (TO-208AB, TO-64-3) ensures efficient heat dissipation and robust performance across an operating temperature range of -40°C to 125°C. This SCR is suitable for use in industrial power supplies, motor control, and welding equipment.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-208AB, TO-64-3, Stud |
| Mounting Type | Chassis, Stud Mount |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 80 mA |
| Current - Gate Trigger (Igt) (Max) | 30 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 250A, 270A |
| Current - On State (It (AV)) (Max) | 16 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Voltage - On State (Vtm) (Max) | 1.6 V |
| Current - Off State (Max) | 3 mA |
| Supplier Device Package | TO-64 |
| Current - On State (It (RMS)) (Max) | 25 A |
| Voltage - Off State | 1.2 kV |
