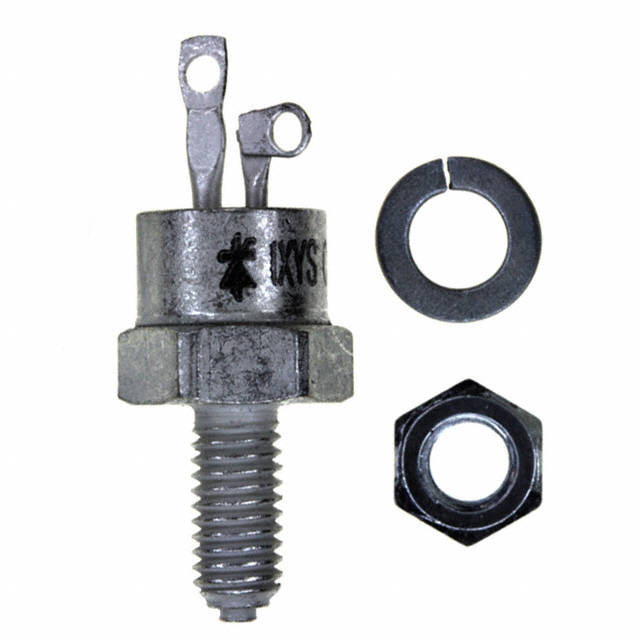

The IXYS CS8-08IO2 is a standard recovery Silicon Controlled Rectifier (SCR) designed for high-power applications. This component features an 800V repetitive peak off-state voltage (VDRM) and a continuous on-state current rating of 25A (IT(RMS)). Its surge current capability is 250A at 50Hz and 270A at 60Hz. The device requires a maximum gate trigger current (IGT) of 30mA and a gate trigger voltage (VGT) of 2.5V. The on-state voltage drop (VTM) is a maximum of 1.6V at 25A. Packaged in a TO-64 (TO-208AB) stud mount configuration, the CS8-08IO2 is suitable for chassis mounting and operates within a temperature range of -40°C to 125°C. This SCR is commonly utilized in industrial motor controls, power supplies, and lighting control systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-208AB, TO-64-3, Stud |
| Mounting Type | Chassis, Stud Mount |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 80 mA |
| Current - Gate Trigger (Igt) (Max) | 30 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 250A, 270A |
| Current - On State (It (AV)) (Max) | 16 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Voltage - On State (Vtm) (Max) | 1.6 V |
| Current - Off State (Max) | 3 mA |
| Supplier Device Package | TO-64 |
| Current - On State (It (RMS)) (Max) | 25 A |
| Voltage - Off State | 800 V |
