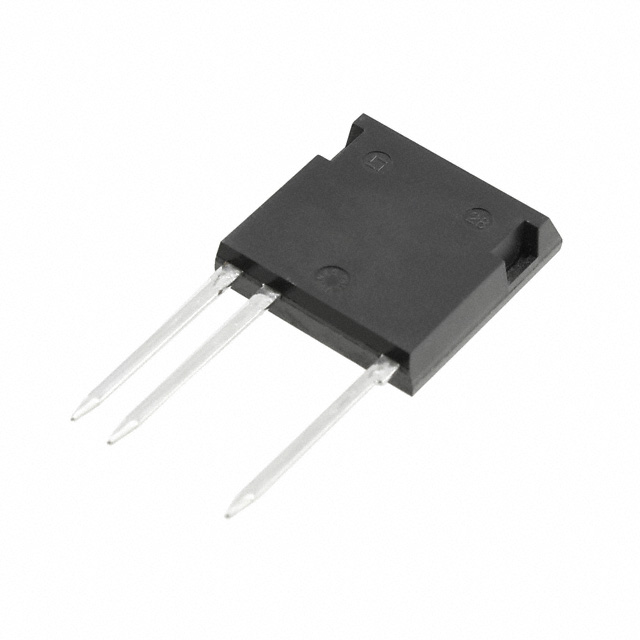

IXYS CS20-22MOF1 is a standard recovery silicon controlled rectifier (SCR) with a voltage rating of 2.2 kV. This through-hole component, housed in the ISOPLUS i4-PAC™ package, is designed for applications requiring high voltage blocking and controlled switching. Key specifications include a maximum on-state current (IT(AV)) of 18 A and a surge current rating (ITSM) of 200 A at 50 Hz. The gate trigger characteristics are rated at 2.3 V maximum (VGT) and 250 mA maximum (IGT). Off-state leakage current is limited to 50 µA. This device is suitable for power control applications in industries such as industrial power supplies and high-voltage DC power transmission. The operating temperature range is -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 43 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | i4-Pac™-5 (3 Leads) |
| Mounting Type | Through Hole |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 150 mA |
| Current - Gate Trigger (Igt) (Max) | 250 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 200A @ 50Hz |
| Current - On State (It (AV)) (Max) | 18 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.3 V |
| Voltage - On State (Vtm) (Max) | 1.5 V |
| Current - Off State (Max) | 50 µA |
| Supplier Device Package | ISOPLUS i4-PAC™ |
| Voltage - Off State | 2.2 kV |
