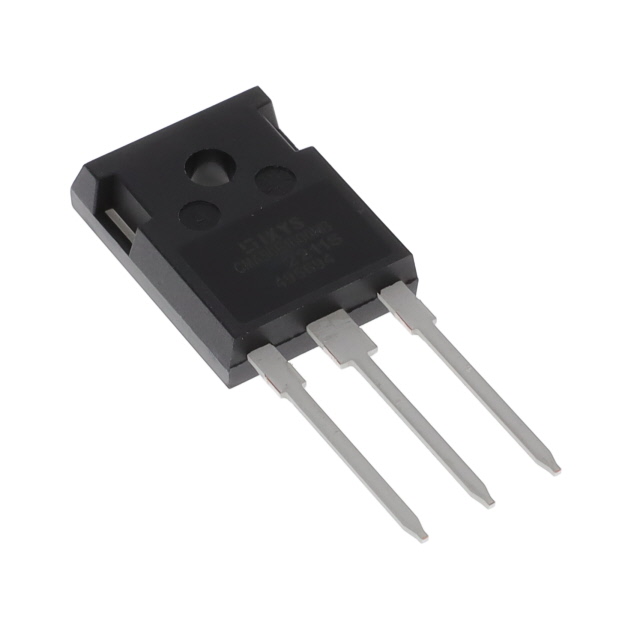

The IXYS CMA50E1600HB is a high-performance Standard Recovery SCR from the CMA50E1600HB series. This through-hole component, housed in a TO-247-3 package, offers a substantial 1.6 kV repetitive peak off-state voltage and a continuous on-state current rating of 50 A (average) and 79 A (RMS). Its surge capability reaches 550A at 50Hz and 595A at 60Hz. Key triggering parameters include a gate trigger current (Igt) of 50 mA and a gate trigger voltage (Vgt) of 1.5 V, with a maximum on-state voltage (Vtm) of 1.3 V. The holding current (Ih) is rated at 100 mA. Operating within an ambient temperature range of -40°C to 150°C, this device is suitable for demanding applications in power control and industrial automation.
Additional Information
Series: CMA50E1600HBRoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 550A, 595A |
| Current - On State (It (AV)) (Max) | 50 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Voltage - On State (Vtm) (Max) | 1.3 V |
| Supplier Device Package | TO-247 (IXTH) |
| Current - On State (It (RMS)) (Max) | 79 A |
| Voltage - Off State | 1.6 kV |
