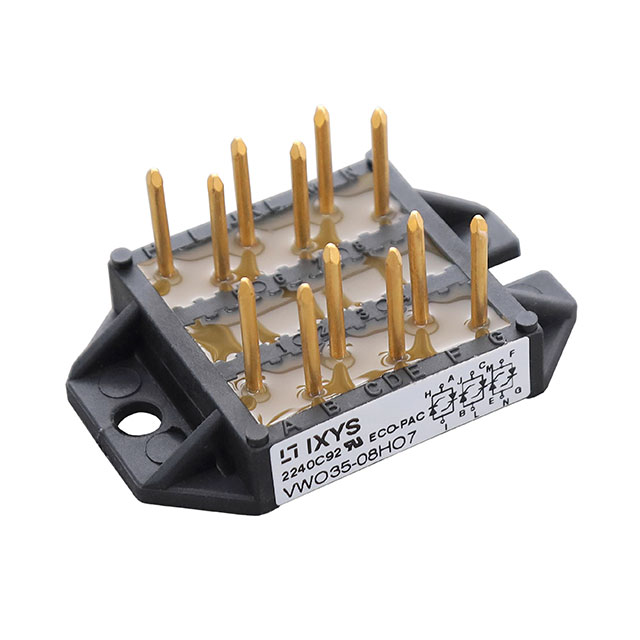

VWO35-08HO7
MODULE AC CTLR 800V ECO-PAC1Manufacturer: IXYS
Categories: SCRs - Modules
Quality Control: Learn More
IXYS VWO35-08HO7 is an 800V, 35A RMS SCR module featuring a 3-phase controller configuration with all SCRs. This chassis mount module offers a robust solution for high-power control applications. It is designed with six SCRs, providing a complete 3-phase solution within a single package. Key specifications include a forward voltage drop of 1.6V per SCR at 35A (typical), a gate trigger current (Igt) of 65mA maximum, and a hold current (Ih) of 50mA maximum. The module exhibits a non-repetitive surge current (Itsm) of 200A at 50Hz and 210A at 60Hz. Operating temperature ranges from -40°C to 125°C. This component is suitable for use in industrial motor control, power supplies, and solid-state switching applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 42 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | 3-Phase Controller - All SCRs |
| Current - Hold (Ih) (Max) | 50 mA |
| Current - Gate Trigger (Igt) (Max) | 65 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 200A, 210A |
| Number of SCRs, Diodes | 6 SCRs |
| Current - On State (It (AV)) (Max) | 16 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - On State (It (RMS)) (Max) | 35 A |
| Voltage - Off State | 800 V |
