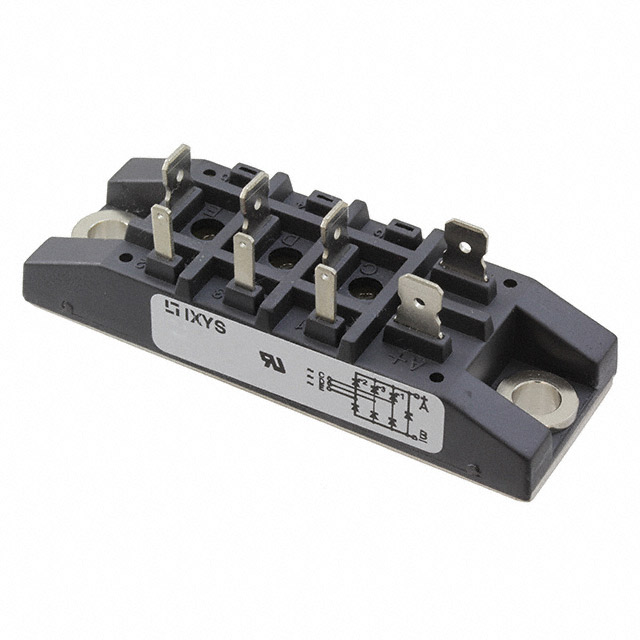

VVZF70-16IO7
RECT BRIDGE 3PH 1600V FO-T-AManufacturer: IXYS
Categories: SCRs - Modules
Quality Control: Learn More
The IXYS VVZF70-16IO7 is a 3-phase SCR bridge module designed for high-power applications. This component features a 1.6 kV repetitive peak off-state voltage and a continuous on-state current of up to 70 A (average). It incorporates three SCRs and three diodes within a chassis-mount FO-T-A package. The module exhibits a non-repetitive surge current capability of 550A at 50Hz and 600A at 60Hz. Gate trigger characteristics include a maximum gate trigger current (Igt) of 100 mA and a maximum gate trigger voltage (Vgt) of 1.5 V. The holding current (Ih) is rated at a maximum of 200 mA. Operating temperature ranges from -40°C to 125°C (TJ). This device is commonly utilized in industrial motor control, power conversion, and high-voltage power supplies.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | FO-T-A |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | Bridge, 3-Phase - SCRs/Diodes |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Gate Trigger (Igt) (Max) | 100 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 550A, 600A |
| Number of SCRs, Diodes | 3 SCRs, 3 Diodes |
| Current - On State (It (AV)) (Max) | 70 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Voltage - Off State | 1.6 kV |
