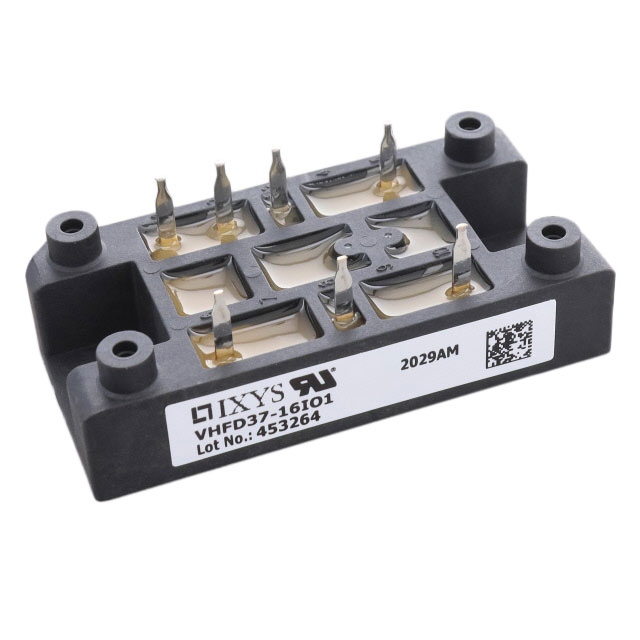

VHFD37-16IO1
RECT BRIDGE 1PH 1600V V1A-PAKManufacturer: IXYS
Categories: SCRs - Modules
Quality Control: Learn More
SCR Module 1.6 kV Bridge, Single Phase - SCRs/Diodes (Layout 1) Chassis Mount V1A-PAK
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | V1A-PAK |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | Bridge, Single Phase - SCRs/Diodes (Layout 1) |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Gate Trigger (Igt) (Max) | 65 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 320A, 350A |
| Number of SCRs, Diodes | 2 SCRs, 4 Diodes |
| Current - On State (It (AV)) (Max) | 36 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1 V |
| Voltage - Off State | 1.6 kV |
Request a Quote
