VHF36-16IO5
RECT BRIDGE 1PH 1600V FO-F-AManufacturer: IXYS
Categories: SCRs - Modules
Quality Control: Learn More

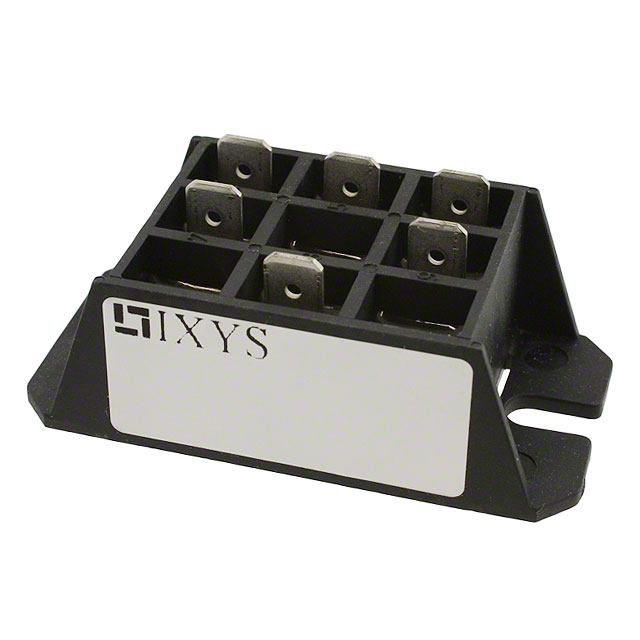

IXYS VHF36-16IO5 is a single-phase SCR module featuring a bridge configuration with two SCRs and two diodes in a Chassis Mount FO-F-A package. This component offers a non-repetitive surge current of 320A at 50Hz and 350A at 60Hz, with a maximum average on-state current of 36A. The off-state voltage rating is 1.6 kV. Gate trigger specifications include a maximum voltage of 1V and a maximum current of 65mA, while the hold current is a maximum of 100mA. Operating temperature ranges from -40°C to 125°C. This module is commonly utilized in industrial applications such as motor control, power supplies, and welding equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | FO-F-A |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | Bridge, Single Phase - SCRs/Diodes (Layout 1) |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Gate Trigger (Igt) (Max) | 65 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 320A, 350A |
| Number of SCRs, Diodes | 2 SCRs, 2 Diodes |
| Current - On State (It (AV)) (Max) | 36 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1 V |
| Voltage - Off State | 1.6 kV |
