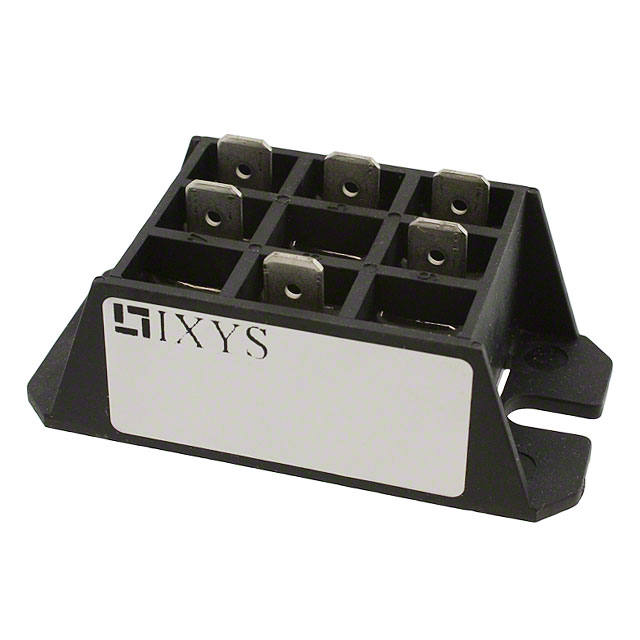

VHF28-16IO5
BRIDGE RECT SGL PHASE 1600V 32AManufacturer: IXYS
Categories: SCRs - Modules
Quality Control: Learn More
IXYS VHF28-16IO5 is a single-phase SCR module featuring a bridge configuration with 2 SCRs and 2 diodes. This chassis-mount component offers a repetitive peak off-state voltage of 1.6 kV and a continuous average on-state current of 28 A. Its non-repetitive surge current (50/60Hz) is rated at 300 A / 330 A. The module requires a maximum gate trigger current of 65 mA and a gate trigger voltage of 1 V, with a maximum holding current of 100 mA. Operating within a temperature range of -40°C to 125°C (TJ), this X118 package component is suitable for industrial applications requiring high-voltage power control, such as motor drives, power supplies, and welding equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | X118 |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | Bridge, Single Phase - SCRs/Diodes (Layout 1) |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Gate Trigger (Igt) (Max) | 65 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 300A, 330A |
| Number of SCRs, Diodes | 2 SCRs, 2 Diodes |
| Current - On State (It (AV)) (Max) | 28 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1 V |
| Voltage - Off State | 1.6 kV |
