VHF28-14IO5
RECT BRIDGE 1PH 1400V FO-F-AManufacturer: IXYS
Categories: SCRs - Modules
Quality Control: Learn More

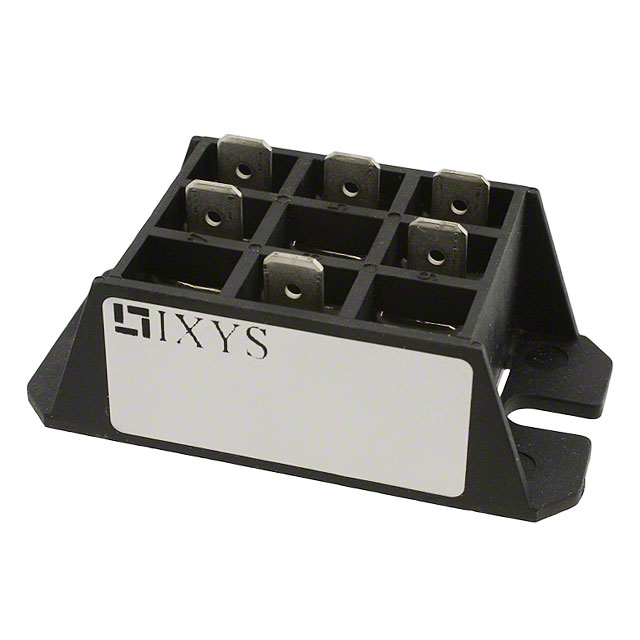

IXYS VHF28-14IO5 is a 1.4 kV single-phase bridge rectifier module featuring 2 SCRs and 2 diodes. This chassis-mount component, designated by the FO-F-A package, offers a continuous on-state current of 28 A (average) with a specified surge current capability of 300 A at 50 Hz and 330 A at 60 Hz. The gate trigger characteristics include a maximum voltage of 1 V and a maximum current of 65 mA, while the holding current is rated at a maximum of 100 mA. Operating within a temperature range of -40°C to 125°C (junction temperature), this module is suitable for power control applications in industrial power supplies, motor drives, and welding equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | FO-F-A |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | Bridge, Single Phase - SCRs/Diodes (Layout 1) |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Gate Trigger (Igt) (Max) | 65 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 300A, 330A |
| Number of SCRs, Diodes | 2 SCRs, 2 Diodes |
| Current - On State (It (AV)) (Max) | 28 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1 V |
| Voltage - Off State | 1.4 kV |
