VHF28-08IO5
RECT BRIDGE 1PH 800V FO-F-AManufacturer: IXYS
Categories: SCRs - Modules
Quality Control: Learn More

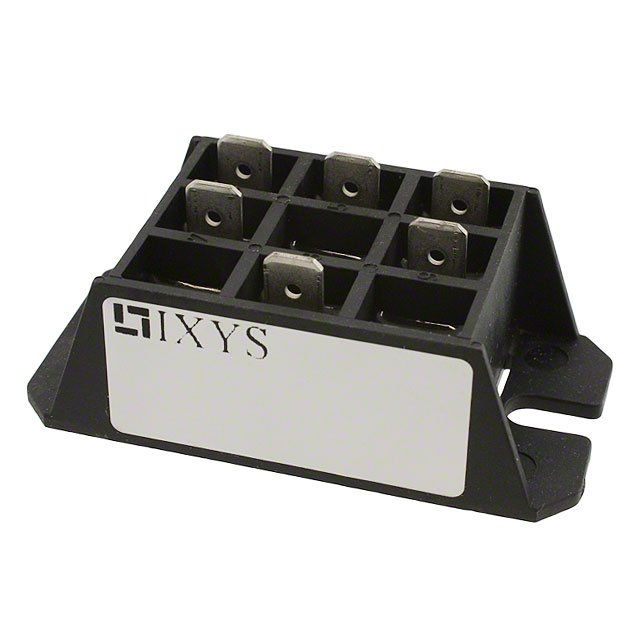

IXYS VHF28-08IO5 is a single-phase SCR bridge module featuring 800V blocking voltage. This chassis-mount component, packaged in FO-F-A, integrates two SCRs and two diodes in a single-phase bridge configuration, specifically Layout 1. It offers a maximum average on-state current (It (AV)) of 28A, with a non-repetitive surge current (Itsm) of 300A at 50Hz and 330A at 60Hz. The gate trigger current (Igt) is a maximum of 65mA with a maximum gate trigger voltage (Vgt) of 1V. The hold current (Ih) is specified at 100mA maximum. Operating temperature ranges from -40°C to 125°C (TJ). This module is suitable for applications requiring robust high-voltage power control, commonly found in industrial motor drives, power supplies, and welding equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | FO-F-A |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | Bridge, Single Phase - SCRs/Diodes (Layout 1) |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Gate Trigger (Igt) (Max) | 65 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 300A, 330A |
| Number of SCRs, Diodes | 2 SCRs, 2 Diodes |
| Current - On State (It (AV)) (Max) | 28 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1 V |
| Voltage - Off State | 800 V |
