VHF15-16IO5
RECT BRIDGE 1PH 1600V PWS-E-1Manufacturer: IXYS
Categories: SCRs - Modules
Quality Control: Learn More

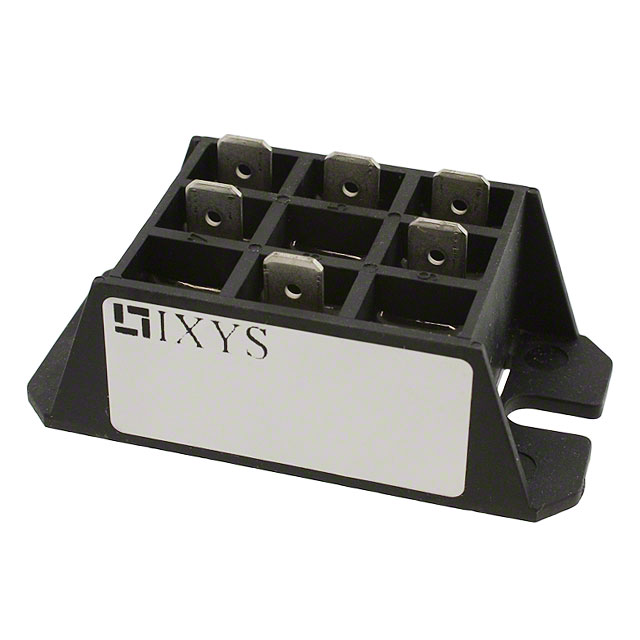

IXYS VHF15-16IO5 is a single-phase bridge rectifier module featuring two SCRs and two diodes. This PWS-E1 chassis-mount component offers a 1.6 kV off-state voltage and a 15 A RMS on-state current. The module is designed for applications requiring high voltage rectification and switching control. Key electrical parameters include a maximum gate trigger current (Igt) of 65 mA and a maximum holding current (Ih) of 100 mA. Non-repetitive surge current capability is 190 A at 50 Hz and 210 A at 60 Hz. The operating temperature range is -40°C to 125°C (TJ). This module finds application in industrial power conversion, motor control, and power supply designs.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | PWS-E1 |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | Bridge, Single Phase - SCRs/Diodes (Layout 1) |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Gate Trigger (Igt) (Max) | 65 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 190A, 210A |
| Number of SCRs, Diodes | 2 SCRs, 2 Diodes |
| Voltage - Gate Trigger (Vgt) (Max) | 1 V |
| Current - On State (It (RMS)) (Max) | 15 A |
| Voltage - Off State | 1.6 kV |
