VHF15-14IO5

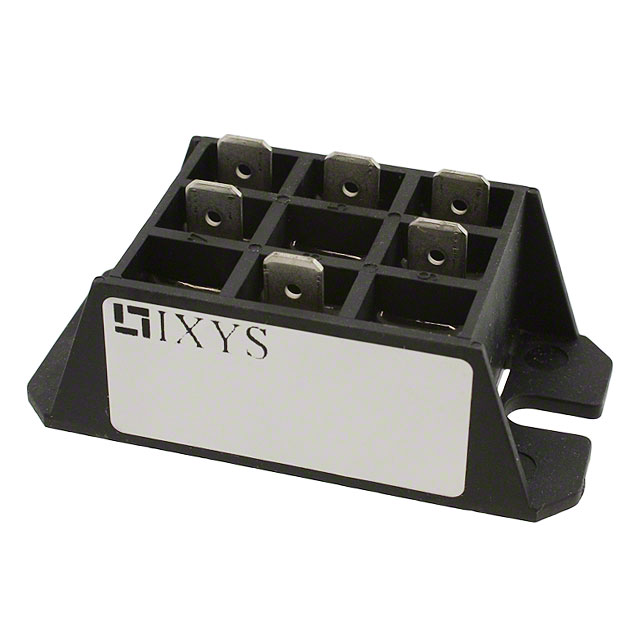

BRIDGE RECTIF SGLE PHASE W/DIODEManufacturer: IXYS
Categories: SCRs - Modules
Quality Control: Learn More
IXYS VHF15-14IO5 is a single-phase bridge rectifier module featuring a robust SCR/Diode configuration. This device is designed for chassis mounting and offers a 1.4 kV off-state voltage rating with a maximum RMS on-state current of 15 A. The module incorporates 2 SCRs and 2 diodes, arranged in a single-phase bridge layout. Key electrical parameters include a maximum gate trigger current (Igt) of 65 mA and a maximum holding current (Ih) of 100 mA. It exhibits a non-repetitive surge current capability of 190 A at 50 Hz and 210 A at 60 Hz. The operating temperature range is specified from -40°C to 125°C (TJ). This component is suitable for applications in industrial motor control, power supplies, and welding equipment. The package type is PWS-E1, and it is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | PWS-E1 |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | Bridge, Single Phase - SCRs/Diodes (Layout 1) |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Gate Trigger (Igt) (Max) | 65 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 190A, 210A |
| Number of SCRs, Diodes | 2 SCRs, 2 Diodes |
| Voltage - Gate Trigger (Vgt) (Max) | 1 V |
| Current - On State (It (RMS)) (Max) | 15 A |
| Voltage - Off State | 1.4 kV |
