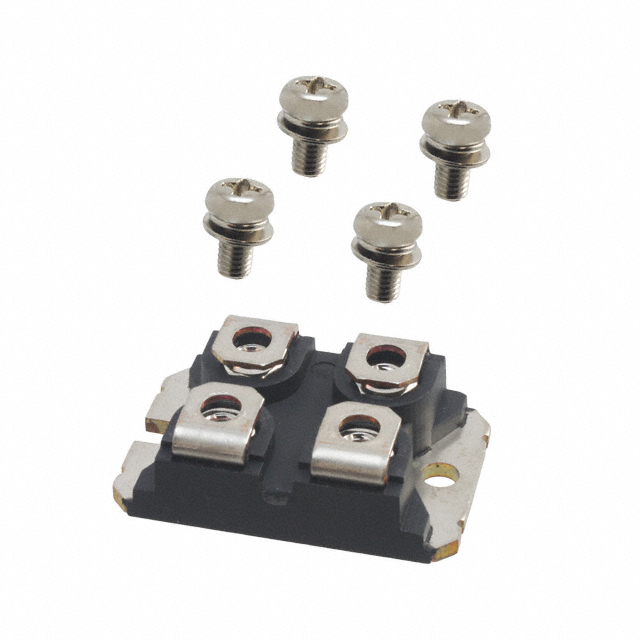

MMO74-16IO6
MODULE AC CTLR 1600V SOT-227BManufacturer: IXYS
Categories: SCRs - Modules
Quality Control: Learn More
SCR Module 1.6 kV 53 A 1-Phase Controller - All SCRs Chassis Mount SOT-227-4, miniBLOC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | SOT-227-4, miniBLOC |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Structure | 1-Phase Controller - All SCRs |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Gate Trigger (Igt) (Max) | 100 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 600A, 640A |
| Number of SCRs, Diodes | 2 SCRs |
| Current - On State (It (AV)) (Max) | 34 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - On State (It (RMS)) (Max) | 53 A |
| Voltage - Off State | 1.6 kV |
