MMO110-14IO7
MODULE AC CONTROL 1400V ECO-PAC1Manufacturer: IXYS
Categories: SCRs - Modules
Quality Control: Learn More

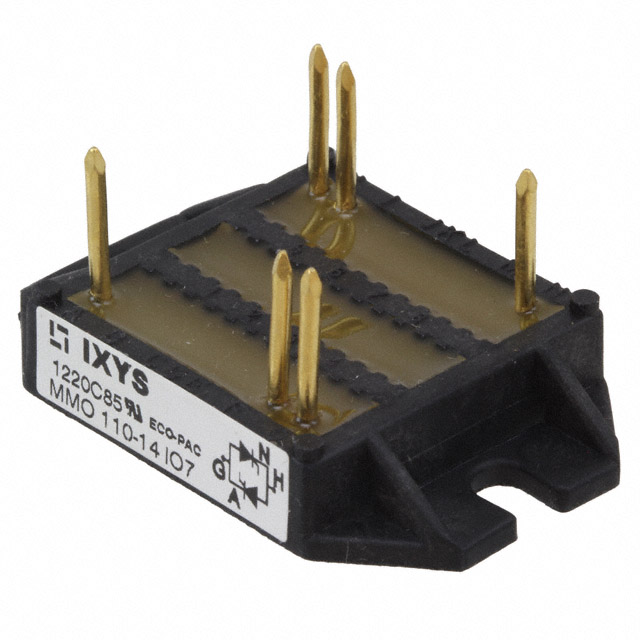

IXYS MMO110-14IO7 is a 1-phase SCR module featuring two SCRs in an ECO-PAC1 package for AC control applications. This chassis mount module offers a blocking voltage of 1.4 kV and a continuous on-state current of 51 A (average) and 81 A (RMS). The surge on-state current is rated at 1000 A at 50 Hz and 1070 A at 60 Hz. Gate trigger current (Igt) and voltage (Vgt) requirements are 100 mA and 1.5 V respectively, with a hold current (Ih) of 100 mA. Operating temperature range is -40°C to 150°C (TJ). This component is utilized in industrial power control, motor drives, and power supply systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 42 week(s)Product Status: ActivePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Structure | 1-Phase Controller - All SCRs |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Gate Trigger (Igt) (Max) | 100 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1000A, 1070A |
| Number of SCRs, Diodes | 2 SCRs |
| Current - On State (It (AV)) (Max) | 51 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - On State (It (RMS)) (Max) | 81 A |
| Voltage - Off State | 1.4 kV |
