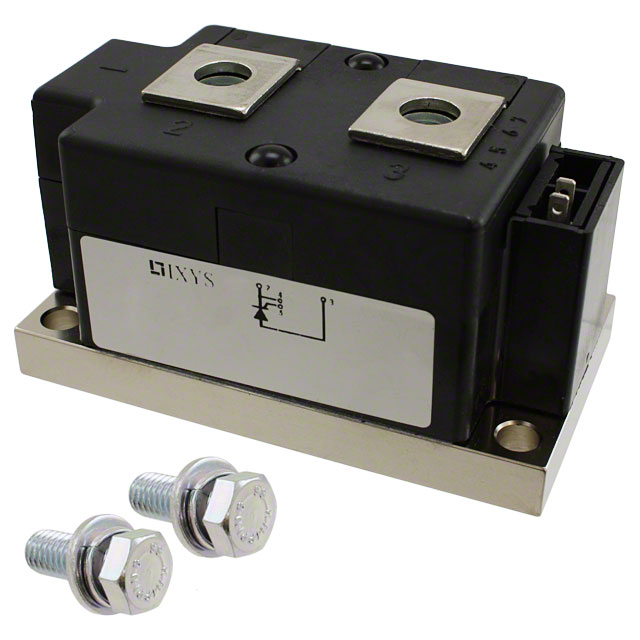

MCO500-12IO1
MOD THYRISTOR SGL 1200V Y1-CUManufacturer: IXYS
Categories: SCRs - Modules
Quality Control: Learn More
SCR Module 1.2 kV 880 A Single Chassis Mount Y1-CU
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Y1-CU |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 140°C (TJ) |
| Structure | Single |
| Current - Hold (Ih) (Max) | 300 mA |
| Current - Gate Trigger (Igt) (Max) | 300 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 17000A, 16000A |
| Number of SCRs, Diodes | 1 SCR |
| Current - On State (It (AV)) (Max) | 560 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - On State (It (RMS)) (Max) | 880 A |
| Voltage - Off State | 1.2 kV |
