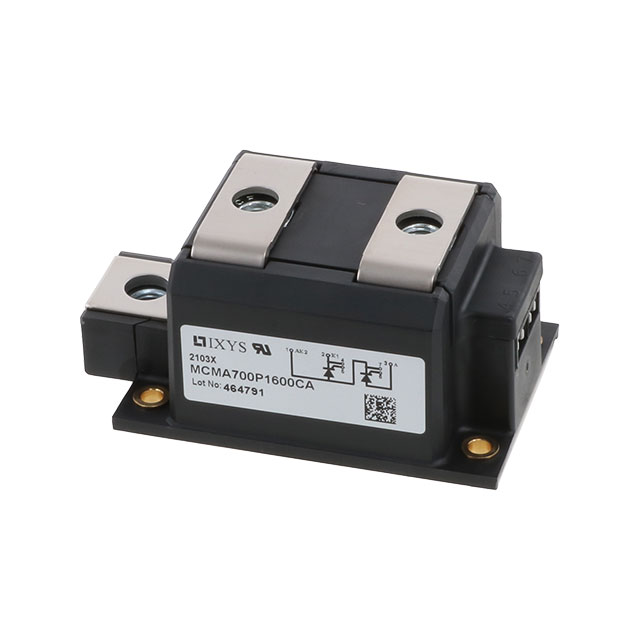

MCMA700P1600CA
SCR MODULE 1.6KV 700A COMPACKManufacturer: IXYS
Categories: SCRs - Modules
Quality Control: Learn More
SCR Module 1.6 kV 1100 A Series Connection - All SCRs Chassis Mount ComPack
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | ComPack |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 140°C (TJ) |
| Structure | Series Connection - All SCRs |
| Current - Hold (Ih) (Max) | 300 mA |
| Current - Gate Trigger (Igt) (Max) | 300 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 19000A, 20500A |
| Number of SCRs, Diodes | 2 SCRs |
| Current - On State (It (AV)) (Max) | 700 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - On State (It (RMS)) (Max) | 1100 A |
| Voltage - Off State | 1.6 kV |
Request a Quote
Clients Also Buy

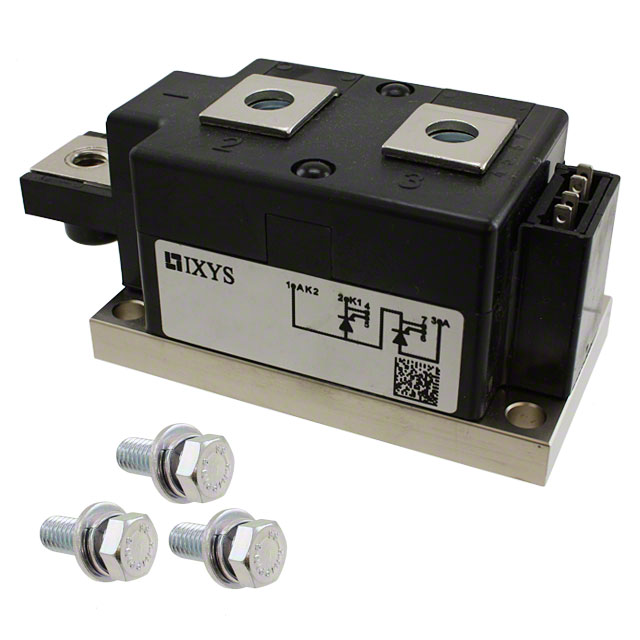

MCC312-14IO1
