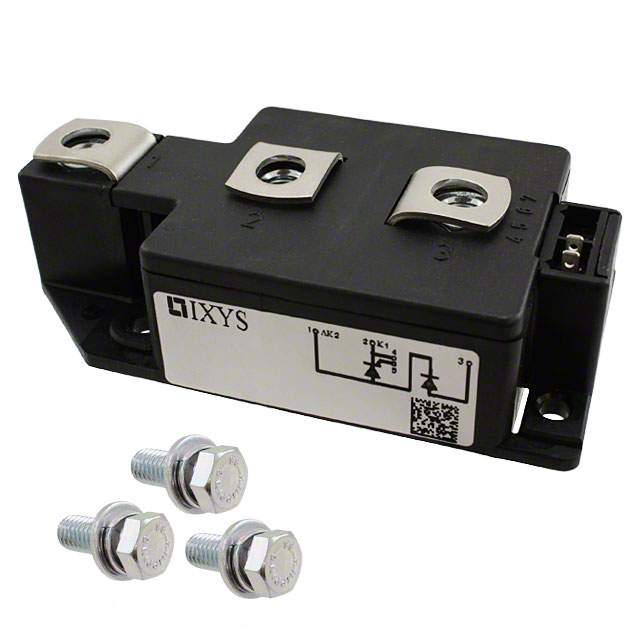

MCD250-16IO1

MOD THYRISTOR/DIODE 1600V Y2-DCB

Manufacturer: IXYS

Categories: SCRs - Modules

Quality Control: Learn More

The IXYS MCD250-16IO1 is a Thyristor/Diode Module designed for high-power applications. This component, with a voltage rating of 1.6 kV and an average on-state current of 287 A (RMS on-state current of 450 A), features a series connection of one SCR and one diode. The module exhibits a non-repetitive surge current of 9000A at 50Hz and 9600A at 60Hz. Gate trigger characteristics include a maximum voltage (Vgt) of 2 V and a maximum current (Igt) of 150 mA, with a hold current (Ih) also at 150 mA. Operating across a temperature range of -40°C to 140°C (TJ), the MCD250-16IO1 is packaged in a Y2-DCB case for chassis mounting. This module is suitable for use in industrial power control, motor drives, and power generation systems.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Box
Technical Details:
PackagingBox
Package / CaseY2-DCB
Mounting TypeChassis Mount
Operating Temperature-40°C ~ 140°C (TJ)
StructureSeries Connection - SCR/Diode
Current - Hold (Ih) (Max)150 mA
Current - Gate Trigger (Igt) (Max)150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)9000A, 9600A
Number of SCRs, Diodes1 SCR, 1 Diode
Current - On State (It (AV)) (Max)287 A
Voltage - Gate Trigger (Vgt) (Max)2 V
Current - On State (It (RMS)) (Max)450 A
Voltage - Off State1.6 kV
