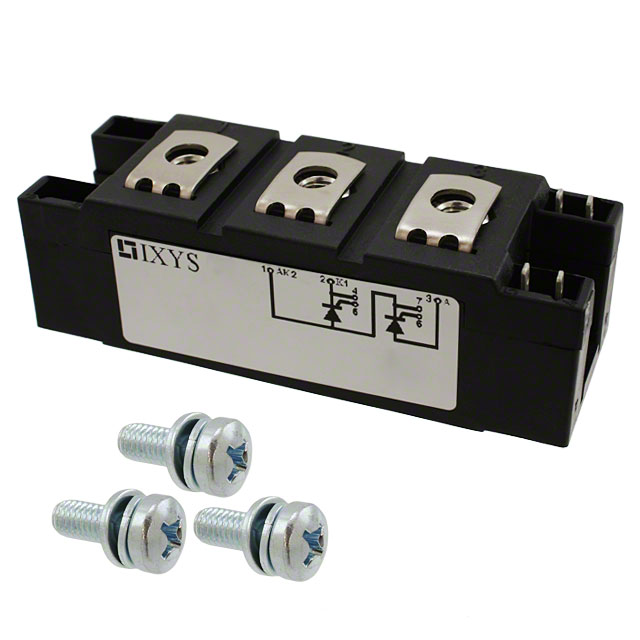

MCD162-16IO1
MOD THYRISTOR/DIODE 1600V Y4-M6Manufacturer: IXYS
Categories: SCRs - Modules
Quality Control: Learn More
SCR Module 1.6 kV 300 A Series Connection - SCR/Diode Chassis Mount Y4-M6
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Y4-M6 |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | Series Connection - SCR/Diode |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 6000A, 6400A |
| Number of SCRs, Diodes | 1 SCR, 1 Diode |
| Current - On State (It (AV)) (Max) | 190 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Current - On State (It (RMS)) (Max) | 300 A |
| Voltage - Off State | 1.6 kV |
