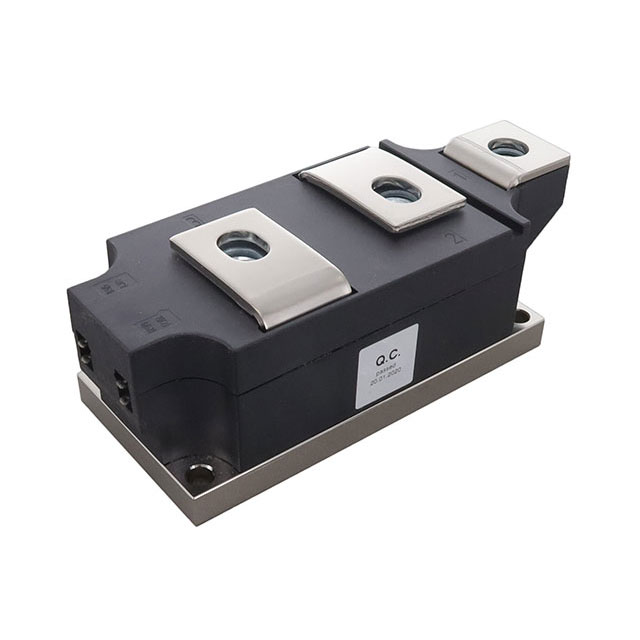

MCC501-18IO2

SCR THY PHASE LEG 1800V WC-501

Manufacturer: IXYS

Categories: SCRs - Modules

Quality Control: Learn More

The IXYS MCC501-18IO2 is a high-performance SCR module featuring a series connection of two SCRs within a WC-501 chassis mount package. This component offers a blocking voltage of 1.8 kV and an impressive non-repetitive surge current capability of 14500A at 50Hz. Designed for demanding power control applications, it is suitable for use in industrial motor drives, power supplies, and welding equipment. The module operates reliably across a temperature range of -40°C to 125°C (TJ) and is supplied in box packaging.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:
Technical Details:
PackagingBox
Package / CaseWC-501
Mounting TypeChassis Mount
Operating Temperature-40°C ~ 125°C (TJ)
StructureSeries Connection - All SCRs
Current - Non Rep. Surge 50, 60Hz (Itsm)14500A @ 50Hz
Number of SCRs, Diodes2 SCRs
Voltage - Off State1.8 kV
