MCC501-16IO2
SCR THY PHASE LEG 1600V WC-501Manufacturer: IXYS
Categories: SCRs - Modules
Quality Control: Learn More

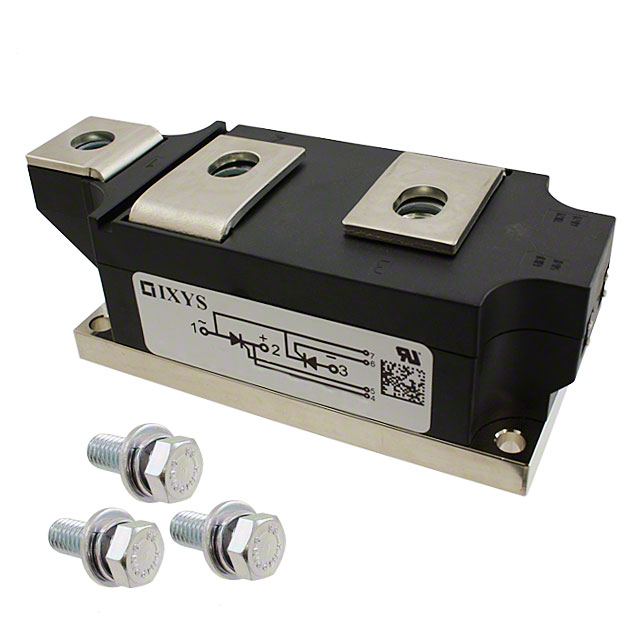

IXYS MCC501-16IO2 is a high-performance SCR module designed for demanding power control applications. This phase leg module features two SCRs in a series configuration, housed in a WC-501 package for efficient chassis mounting. With a repetitive peak off-state voltage (VRRM) of 1.6 kV and a non-repetitive surge current (ITSM) of 14500A at 50Hz, it is engineered for robust operation in high-power environments. Operating across a temperature range of -40°C to 125°C (TJ), the MCC501-16IO2 is suitable for industrial applications such as motor drives, power supplies, and welding equipment where reliable switching and high surge handling capabilities are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 99 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | WC-501 |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | Series Connection - All SCRs |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 14500A @ 50Hz |
| Number of SCRs, Diodes | 2 SCRs |
| Voltage - Off State | 1.6 kV |
