MCC250-18IO1

THYRISTOR DUAL 1800V 450A

Manufacturer: IXYS

Categories: SCRs - Modules

Quality Control: Learn More

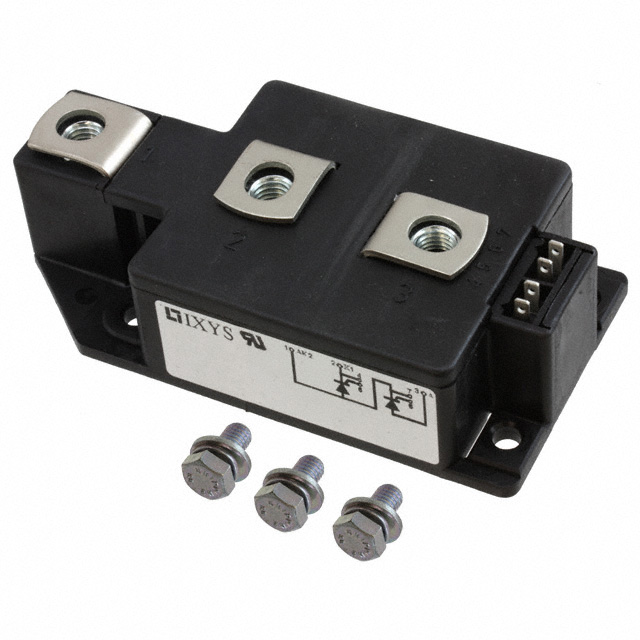

IXYS MCC250-18IO1 is a dual Thyristor module designed for high-power applications. This component features two SCRs connected in series within a single Y2-DCB package for chassis mounting. It offers a repetitive peak off-state voltage of 1.8 kV and a continuous on-state current rating of 287 A (average) and 450 A (RMS). The module exhibits a high surge current capability of 9000 A at 50 Hz and 9600 A at 60 Hz. Key trigger parameters include a gate trigger current (Igt) of 150 mA and a gate trigger voltage (Vgt) of 2 V maximum. The hold current (Ih) is also rated at 150 mA maximum. Operating across a temperature range of -40°C to 140°C, this module is suitable for demanding industrial power control, motor drives, and power supply applications.

Additional Information

Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Bulk
Technical Details:
PackagingBulk
Package / CaseY2-DCB
Mounting TypeChassis Mount
Operating Temperature-40°C ~ 140°C (TJ)
StructureSeries Connection - All SCRs
Current - Hold (Ih) (Max)150 mA
Current - Gate Trigger (Igt) (Max)150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)9000A, 9600A
Number of SCRs, Diodes2 SCRs
Current - On State (It (AV)) (Max)287 A
Voltage - Gate Trigger (Vgt) (Max)2 V
Current - On State (It (RMS)) (Max)450 A
Voltage - Off State1.8 kV
