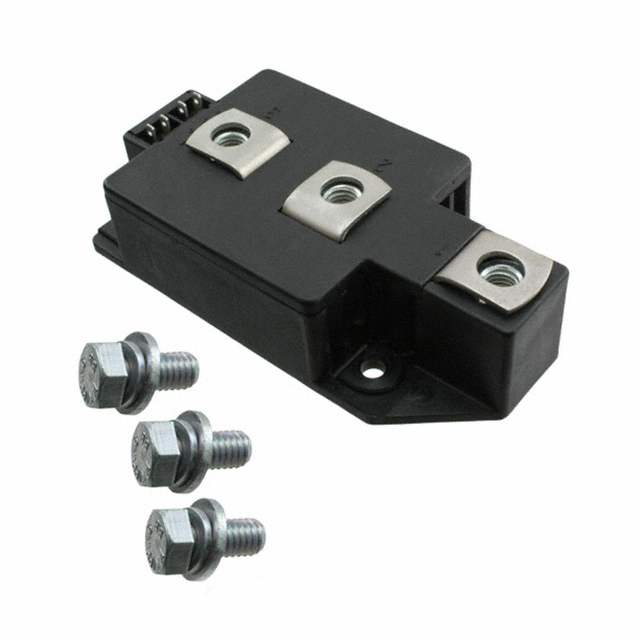

MCC250-16IO1

MOD THYRISTOR DUAL 1600V Y2-DCB

Manufacturer: IXYS

Categories: SCRs - Modules

Quality Control: Learn More

IXYS MCC250-16IO1 is a dual SCR module featuring a series connection of two SCRs within a Y2-DCB chassis mount package. This component offers a repetitive peak off-state voltage of 1.6 kV and a continuous on-state current rating (RMS) of 450 A, with an average on-state current of 287 A. It is designed for high-power applications, exhibiting a non-repetitive surge current capability of 9000 A at 50 Hz and 9600 A at 60 Hz. The gate trigger characteristics include a maximum gate trigger current (Igt) of 150 mA and a maximum gate trigger voltage (Vgt) of 2 V, with a maximum holding current (Ih) also at 150 mA. Operating across a temperature range of -40°C to 140°C, this module is suitable for use in power control, motor drives, and welding equipment.

Additional Information

Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Box
Technical Details:
PackagingBox
Package / CaseY2-DCB
Mounting TypeChassis Mount
Operating Temperature-40°C ~ 140°C (TJ)
StructureSeries Connection - All SCRs
Current - Hold (Ih) (Max)150 mA
Current - Gate Trigger (Igt) (Max)150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)9000A, 9600A
Number of SCRs, Diodes2 SCRs
Current - On State (It (AV)) (Max)287 A
Voltage - Gate Trigger (Vgt) (Max)2 V
Current - On State (It (RMS)) (Max)450 A
Voltage - Off State1.6 kV
