MCC250-14IO1
THYRISTOR DUAL 1400V 450AManufacturer: IXYS
Categories: SCRs - Modules
Quality Control: Learn More

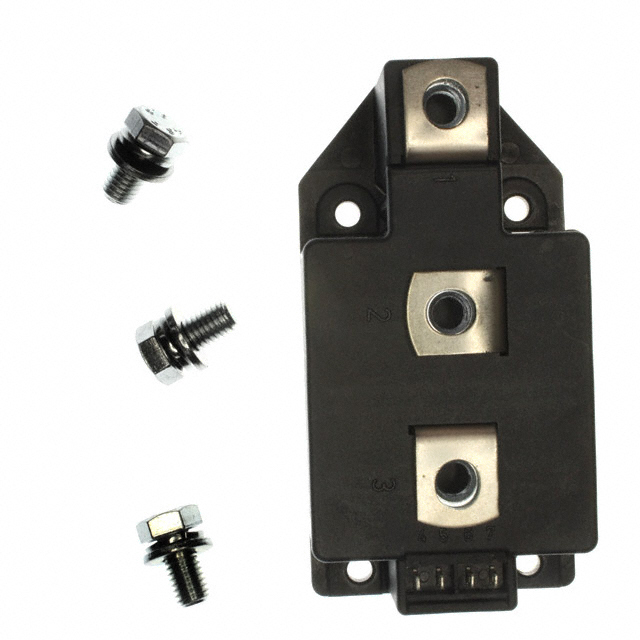

IXYS MCC250-14IO1 is a dual SCR module featuring a series connection of two thyristors. This electronic component is rated for 1.4 kV off-state voltage and a 450 A RMS on-state current. The module offers a significant 9000A (50Hz) or 9600A (60Hz) non-repetitive surge current capability. Gate trigger characteristics include a maximum voltage of 2 V and a maximum current of 150 mA, with a hold current also specified at 150 mA. Designed for chassis mounting, it utilizes the Y2-DCB package. Operating temperature ranges from -40°C to 140°C (TJ). This component is suitable for applications in high-power industrial motor control and power conversion systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Y2-DCB |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 140°C (TJ) |
| Structure | Series Connection - All SCRs |
| Current - Hold (Ih) (Max) | 150 mA |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 9000A, 9600A |
| Number of SCRs, Diodes | 2 SCRs |
| Current - On State (It (AV)) (Max) | 287 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - On State (It (RMS)) (Max) | 450 A |
| Voltage - Off State | 1.4 kV |
