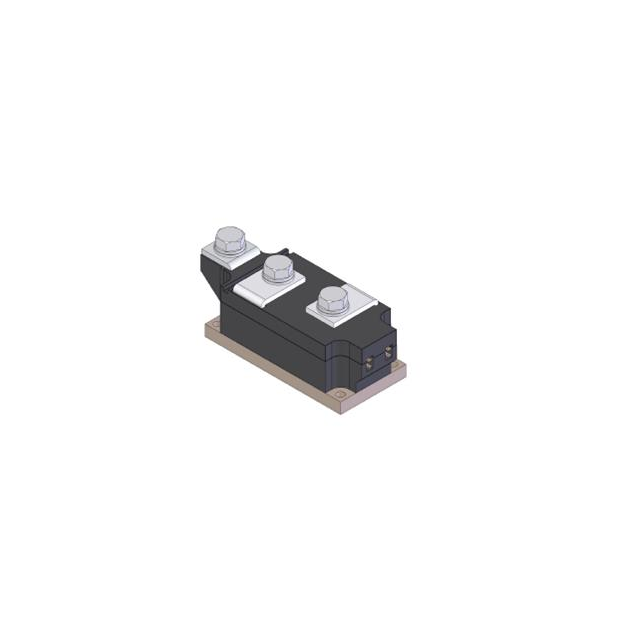

MCC240-60IO2
THYRISTOR DUAL MODULE 240A 6000VManufacturer: IXYS
Categories: SCRs - Modules
Quality Control: Learn More
SCR Module 6 kV 376 A Series Connection - All SCRs Chassis Mount Module
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | Series Connection - All SCRs |
| Current - Hold (Ih) (Max) | 300 mA |
| Current - Gate Trigger (Igt) (Max) | 300 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 44000A @ 50Hz |
| Number of SCRs, Diodes | 2 SCRs |
| Current - On State (It (AV)) (Max) | 240 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Current - On State (It (RMS)) (Max) | 376 A |
| Voltage - Off State | 6 kV |
