MCC220-16IO1
MOD THYRISTOR DUAL 1600V Y2-DCBManufacturer: IXYS
Categories: SCRs - Modules
Quality Control: Learn More

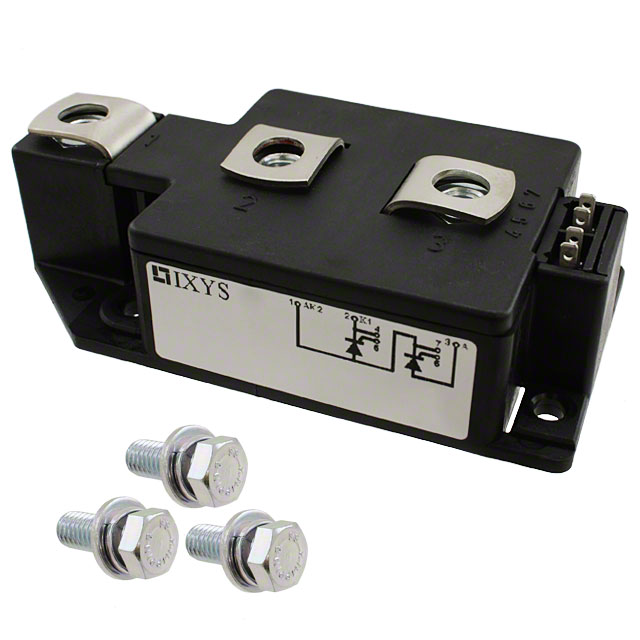

The IXYS MCC220-16IO1 is a dual SCR module designed for high-power applications. This component features two SCRs connected in series within a Y2-DCB package, facilitating chassis mounting for efficient thermal management. It offers a repetitive peak off-state voltage (VDRM) of 1.6 kV and a continuous on-state current (IT(AV)) of 250 A, with an RMS on-state current (IT(RMS)) rating of 400 A. The non-repetitive surge current (ITSM) is rated at 8500 A at 50 Hz and 9000 A at 60 Hz. Gate trigger characteristics include a maximum gate trigger voltage (VGT) of 2 V and a maximum gate trigger current (IGT) of 150 mA, with a holding current (IH) maximum of 150 mA. Operating across a temperature range of -40°C to 140°C (TJ), this module is suitable for use in industrial power control systems, motor drives, and power supplies.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Y2-DCB |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 140°C (TJ) |
| Structure | Series Connection - All SCRs |
| Current - Hold (Ih) (Max) | 150 mA |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 8500A, 9000A |
| Number of SCRs, Diodes | 2 SCRs |
| Current - On State (It (AV)) (Max) | 250 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - On State (It (RMS)) (Max) | 400 A |
| Voltage - Off State | 1.6 kV |
