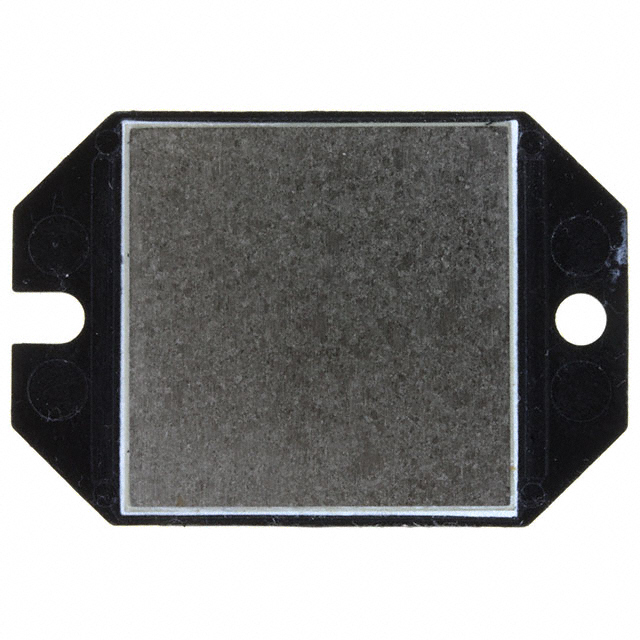

VKI75-06P1
IGBT MOD 600V 69A 208W ECO-PAC2Manufacturer: IXYS
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module NPT Full Bridge Inverter 600 V 69 A 208 W Chassis Mount ECO-PAC2
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | ECO-PAC2 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Full Bridge Inverter |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 75A |
| NTC Thermistor | Yes |
| Supplier Device Package | ECO-PAC2 |
| IGBT Type | NPT |
| Current - Collector (Ic) (Max) | 69 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 208 W |
| Current - Collector Cutoff (Max) | 800 µA |
| Input Capacitance (Cies) @ Vce | 2.8 nF @ 25 V |
