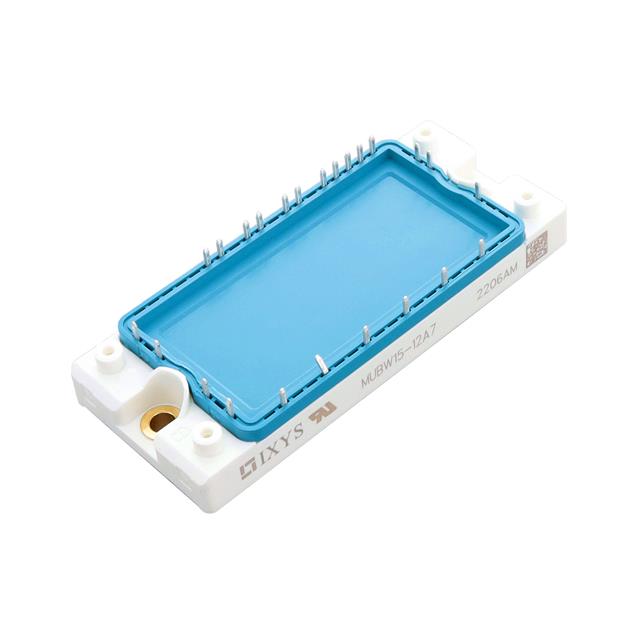

MUBW15-12A7
IGBT MODULE 1200V 35A 180W E2Manufacturer: IXYS
Categories: IGBT Modules
Quality Control: Learn More
IXYS MUBW15-12A7 is a 1200V, 35A NPT IGBT module designed for three-phase inverter applications with a brake function. This module features a maximum power dissipation of 180W and a low collector-emitter saturation voltage of 2.6V at 15V gate-emitter voltage and 15A collector current. The module includes an integrated NTC thermistor for thermal monitoring and a chassis mount package (E2) for efficient heat dissipation. Suitable for industrial motor drives, renewable energy systems, and power conversion applications, it operates across a temperature range of -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | E2 |
| Mounting Type | Chassis Mount |
| Input | Three Phase Bridge Rectifier |
| Configuration | Three Phase Inverter with Brake |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.6V @ 15V, 15A |
| NTC Thermistor | Yes |
| Supplier Device Package | E2 |
| IGBT Type | NPT |
| Current - Collector (Ic) (Max) | 35 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 180 W |
| Current - Collector Cutoff (Max) | 900 µA |
| Input Capacitance (Cies) @ Vce | 1 nF @ 25 V |
