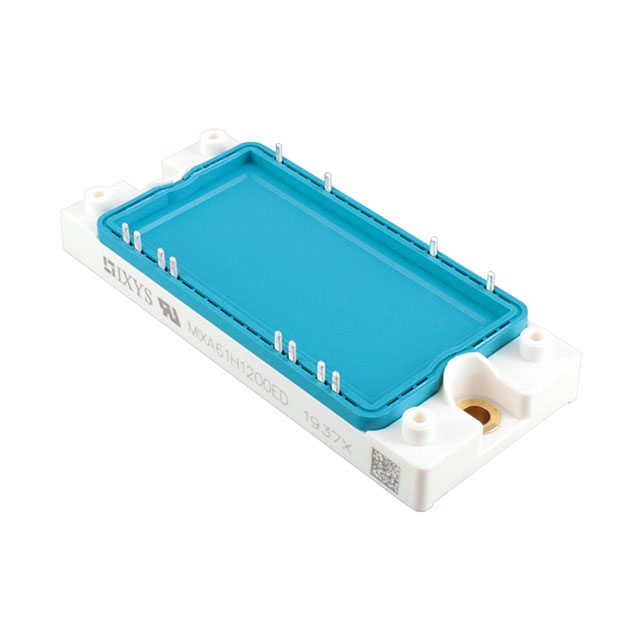

MIXA61H1200ED
IGBT MODULE 1200V 85A 290W E2Manufacturer: IXYS
Categories: IGBT Modules
Quality Control: Learn More
IXYS MIXA61H1200ED is a 1200V, 85A IGBT Module featuring a Full Bridge Inverter configuration. This module, part of the PT IGBT Type, offers a maximum power dissipation of 290W and a collector-emitter voltage (Vce(on)) of 2.1V at 15V Vge and 55A Ic. Designed for robust performance, it operates within a temperature range of -40°C to 125°C (TJ). The E2 package facilitates chassis mounting for efficient thermal management. With a standard input and a collector cutoff current of 500 µA, this component is suitable for applications in industrial power systems, motor drives, and power factor correction.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 68 week(s)Product Status: ActivePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | E2 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Full Bridge Inverter |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 55A |
| NTC Thermistor | No |
| Supplier Device Package | E2 |
| IGBT Type | PT |
| Current - Collector (Ic) (Max) | 85 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 290 W |
| Current - Collector Cutoff (Max) | 500 µA |
