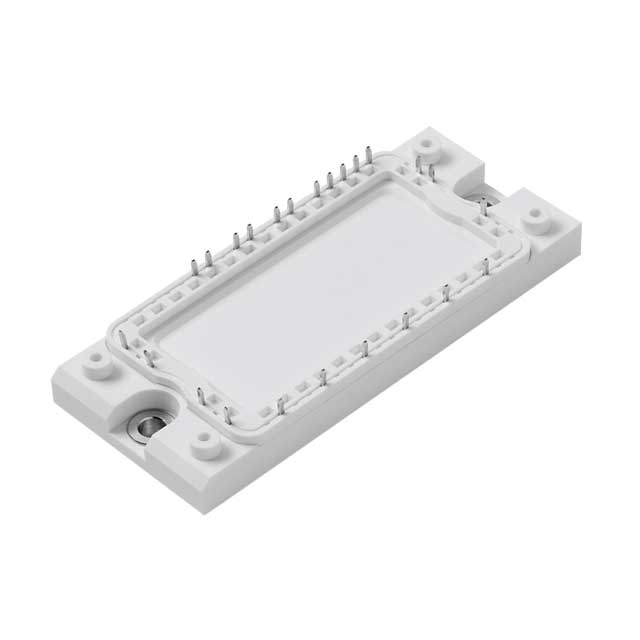

MIXA40WB1200TED
IGBT MODULE 1200V 60A 195W E2Manufacturer: IXYS
Categories: IGBT Modules
Quality Control: Learn More
IXYS presents the MIXA40WB1200TED, a robust IGBT module featuring a 1200V collector-emitter breakdown voltage and a continuous collector current rating of 60A. This PT IGBT configuration offers a three-phase inverter with brake functionality, suitable for demanding power applications. With a maximum power dissipation of 195W and a low on-state voltage of 2.1V at 15V gate-emitter voltage and 35A collector current, it ensures efficient power conversion. The module incorporates an NTC thermistor for thermal management and is designed for chassis mounting within the E2 package. Operating across a temperature range of -40°C to 125°C (TJ), this component is ideal for industrial power supplies, motor drives, and renewable energy systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 60 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | E2 |
| Mounting Type | Chassis Mount |
| Input | Three Phase Bridge Rectifier |
| Configuration | Three Phase Inverter with Brake |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 35A |
| NTC Thermistor | Yes |
| Supplier Device Package | E2 |
| IGBT Type | PT |
| Current - Collector (Ic) (Max) | 60 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 195 W |
| Current - Collector Cutoff (Max) | 2.1 mA |
