MIXA20WB1200TED

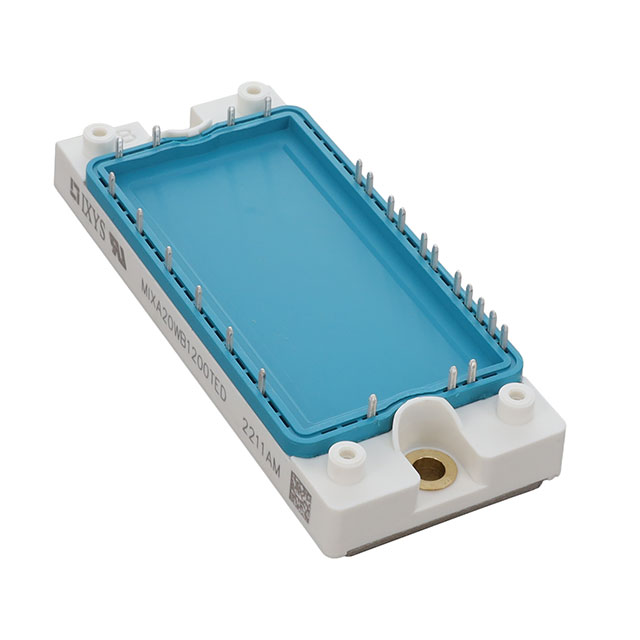

IGBT MODULE 1200V 28A 100W E2Manufacturer: IXYS
Categories: IGBT Modules
Quality Control: Learn More
IXYS IGBT Module MIXA20WB1200TED offers a robust solution for high-power applications. This PT IGBT module features a 1200 V collector-emitter breakdown voltage and a maximum collector current of 28 A. Designed for three-phase inverter configurations with braking, it incorporates a three-phase bridge rectifier input. The module delivers 100 W of power and exhibits a typical Vce(on) of 2.1 V at 15 V gate-emitter voltage and 16 A collector current. An integrated NTC thermistor facilitates thermal management, operating across a temperature range of -40°C to 125°C. The MIXA20WB1200TED is packaged in an E2 chassis mount configuration, making it suitable for demanding industrial environments including motor control, power supplies, and renewable energy systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 60 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | E2 |
| Mounting Type | Chassis Mount |
| Input | Three Phase Bridge Rectifier |
| Configuration | Three Phase Inverter with Brake |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 16A |
| NTC Thermistor | Yes |
| Supplier Device Package | E2 |
| IGBT Type | PT |
| Current - Collector (Ic) (Max) | 28 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 100 W |
| Current - Collector Cutoff (Max) | 1.5 mA |
