IXYN110N120C4

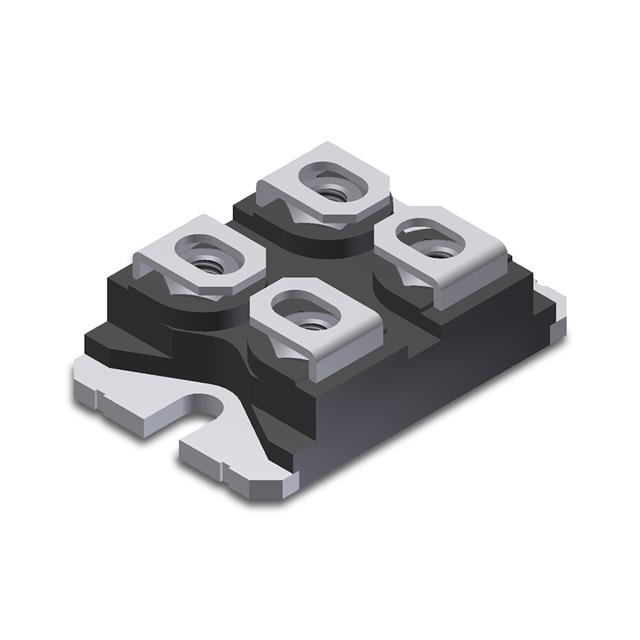

IGBT 1200V 110A GEN4 XPT SOT227BManufacturer: IXYS
Categories: IGBT Modules
Quality Control: Learn More
The IXYS XPT™ IXYN110N120C4 is a single IGBT module designed for high-power applications. Featuring a 1200 V breakdown voltage and a continuous collector current capability of 220 A, this component is built for demanding environments. The module boasts a maximum power dissipation of 830 W and a low on-state voltage of 2.4 V at 15 V gate-emitter voltage and 110 A collector current. Its input capacitance is specified at 5.42 nF at 25 V. The IXYN110N120C4 utilizes a SOT-227-4, miniBLOC package for chassis mounting, ensuring efficient thermal management. Operating temperature ranges from -55°C to 175°C (TJ). This IGBT module is suitable for power conversion systems in industrial motor drives and renewable energy applications.
Additional Information
Series: XPT™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 57 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | SOT-227-4, miniBLOC |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Single |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 110A |
| NTC Thermistor | No |
| Supplier Device Package | SOT-227 |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 220 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 830 W |
| Current - Collector Cutoff (Max) | 50 µA |
| Input Capacitance (Cies) @ Vce | 5.42 nF @ 25 V |
