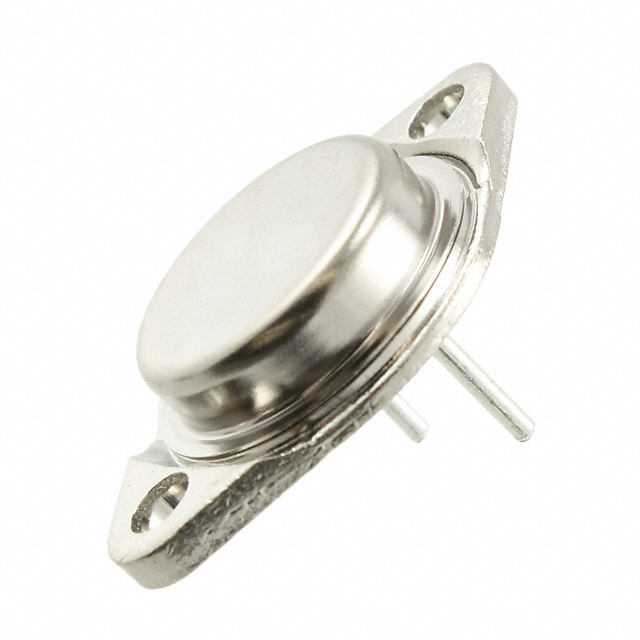

IXGM40N60A
IGBT MODULE 600V 75A 250W TO204Manufacturer: IXYS
Categories: IGBT Modules
Quality Control: Learn More
IXYS IXGM40N60A is a single IGBT module designed for high-power switching applications. This component features a 600V collector-emitter breakdown voltage and a maximum continuous collector current of 75A. The module exhibits a low on-state voltage of 3V at 15V gate-emitter voltage and 40A collector current. With a maximum power dissipation of 250W, it is suitable for demanding environments. The device is presented in a TO-204AA (TO-3) package, facilitating robust chassis mounting. Typical applications include motor drives, induction heating, and power supplies within industrial and automotive sectors. The input capacitance is specified at 4.5 nF @ 25V. Operating temperature range is -55°C to 150°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging:Download Free CAD Model:
Technical Details:
| Packaging | |
| Package / Case | TO-204AA, TO-3 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Single |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 3V @ 15V, 40A |
| NTC Thermistor | No |
| Supplier Device Package | TO-204 |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 75 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 250 W |
| Current - Collector Cutoff (Max) | 200 µA |
| Input Capacitance (Cies) @ Vce | 4.5 nF @ 25 V |
