IXDN502D1T/R

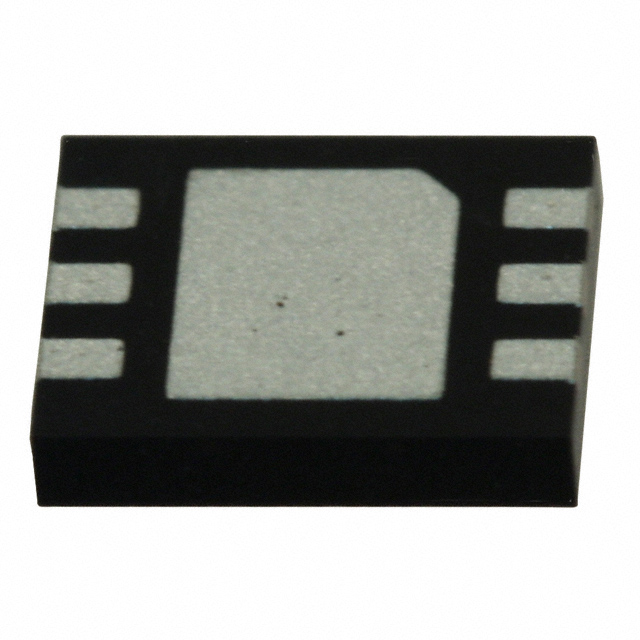

IC GATE DRVR LOW-SIDE 6DFNManufacturer: IXYS
Categories: Gate Drivers
Quality Control: Learn More
The IXYS IXDN502D1T-R is a dual, low-side gate driver IC featuring independent channels and a non-inverting input. This component is designed for driving IGBTs and N-channel/P-channel MOSFETs, providing robust performance across a wide supply voltage range of 4.5V to 30V. It delivers a peak output current of 2A for both source and sink operations, with characteristic rise and fall times of 7.5ns and 6.5ns respectively. The device operates within an extended temperature range of -55°C to 150°C. Its 6-DFN (4x5) package with an exposed pad is ideal for surface mount applications. This driver finds utility in power supply, motor control, and industrial automation applications.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-VDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Voltage - Supply | 4.5V ~ 30V |
| Input Type | Non-Inverting |
| Supplier Device Package | 6-DFN (4x5) |
| Rise / Fall Time (Typ) | 7.5ns, 6.5ns |
| Channel Type | Independent |
| Driven Configuration | Low-Side |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 3V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Programmable | Not Verified |
