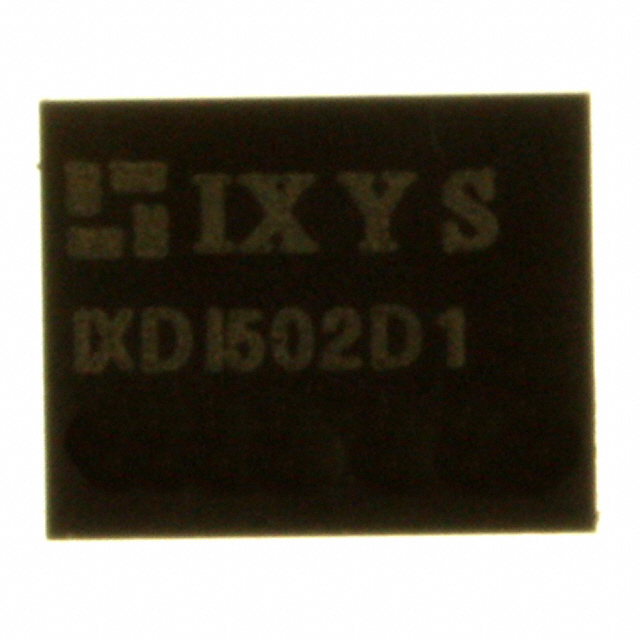

IXDI502D1T/R
IC GATE DRVR LOW-SIDE 6DFNManufacturer: IXYS
Categories: Gate Drivers
Quality Control: Learn More
The IXYS IXDI502D1T-R is a low-side gate driver IC featuring an inverting input configuration. This device provides two independent channels, each capable of delivering 2A peak output current for both source and sink operations. Designed for driving IGBTs and N-channel/P-channel MOSFETs, it operates with a supply voltage range of 4.5V to 30V. The logic input thresholds are set at 0.8V (VIL) and 3V (VIH).
The IXDI502D1T-R is housed in a 6-VDFN exposed pad package, specifically a 6-DFN (4x5) footprint, and is supplied on tape and reel. Its typical rise and fall times are 7.5ns and 6.5ns, respectively. This component is suitable for applications in power electronics, motor control, and industrial automation systems. The operating temperature range is from -55°C to 150°C (TJ).
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-VDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Voltage - Supply | 4.5V ~ 30V |
| Input Type | Inverting |
| Supplier Device Package | 6-DFN (4x5) |
| Rise / Fall Time (Typ) | 7.5ns, 6.5ns |
| Channel Type | Independent |
| Driven Configuration | Low-Side |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 3V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Programmable | Not Verified |
