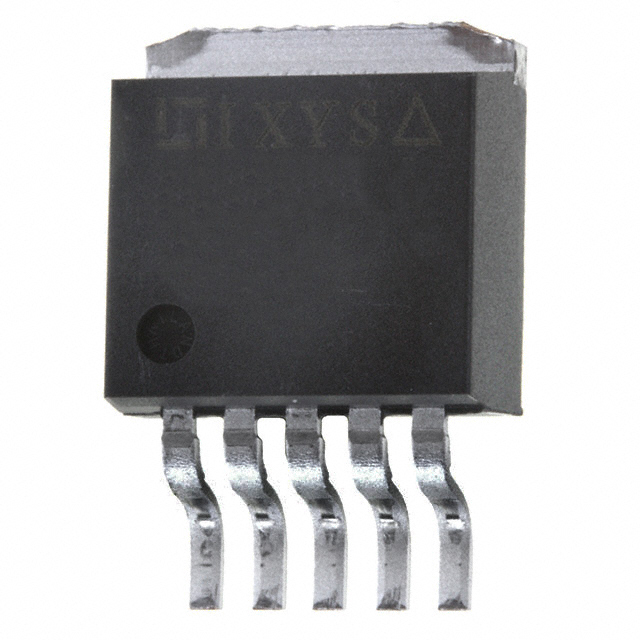

IXDD414YI
IC GATE DRVR LOW-SIDE TO263Manufacturer: IXYS
Categories: Gate Drivers
Quality Control: Learn More
The IXYS IXDD414YI is a single, non-inverting low-side gate driver IC housed in a TO-263-5 package. This component delivers robust performance with peak output currents of 14A source and 14A sink, facilitating rapid switching of high-power devices. It is designed to drive IGBT, N-Channel, and P-Channel MOSFETs, offering flexibility across various power topologies. The device operates with a supply voltage range of 4.5V to 35V and features logic input thresholds of 0.8V for VIL and 3.5V for VIH. With typical rise and fall times of 25ns and 22ns respectively, the IXDD414YI is well-suited for applications requiring efficient power conversion and control. Its surface mount configuration and wide operating temperature range of -55°C to 150°C make it suitable for demanding industrial environments, including power supplies, motor control, and renewable energy systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Voltage - Supply | 4.5V ~ 35V |
| Input Type | Non-Inverting |
| Supplier Device Package | TO-263-5 |
| Rise / Fall Time (Typ) | 25ns, 22ns |
| Channel Type | Single |
| Driven Configuration | Low-Side |
| Number of Drivers | 1 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 3.5V |
| Current - Peak Output (Source, Sink) | 14A, 14A |
| Programmable | Not Verified |
