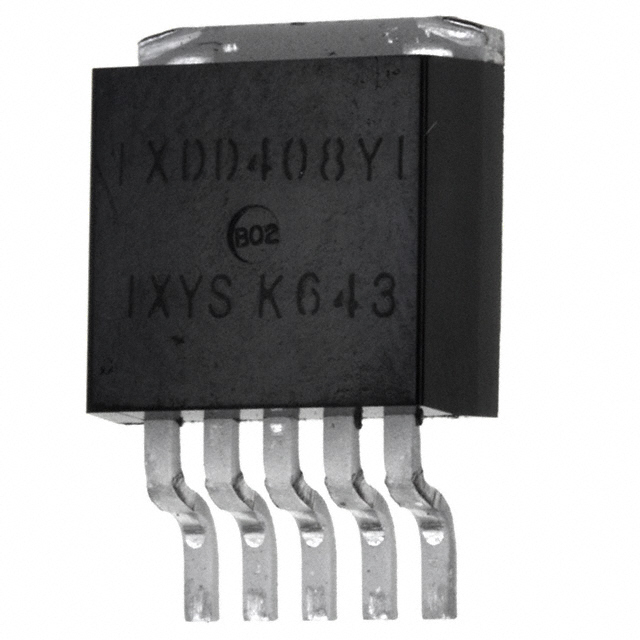

IXDD408YI
IC GATE DRVR LOW-SIDE TO263Manufacturer: IXYS
Categories: Gate Drivers
Quality Control: Learn More
The IXYS IXDD408YI is a single-channel, non-inverting low-side gate driver IC designed for driving high-speed power MOSFETs and IGBTs. This component features robust output stages capable of sourcing and sinking 8A peak current, with typical rise and fall times of 14ns and 15ns respectively. Operating from a supply voltage range of 4.5V to 25V, it offers logic compatibility with input thresholds of 0.8V (VIL) and 3.5V (VIH). The IXDD408YI is housed in a TO-263-5 surface-mount package, facilitating efficient thermal management and integration into compact designs. Its high current capability and fast switching performance make it suitable for applications in power conversion, motor control, and solid-state lighting. The IXYS IXDD408YI is supplied in tubes for high-volume manufacturing.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 4.5V ~ 25V |
| Input Type | Non-Inverting |
| Supplier Device Package | TO-263-5 |
| Rise / Fall Time (Typ) | 14ns, 15ns |
| Channel Type | Single |
| Driven Configuration | Low-Side |
| Number of Drivers | 1 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 3.5V |
| Current - Peak Output (Source, Sink) | 8A, 8A |
| Programmable | Not Verified |
