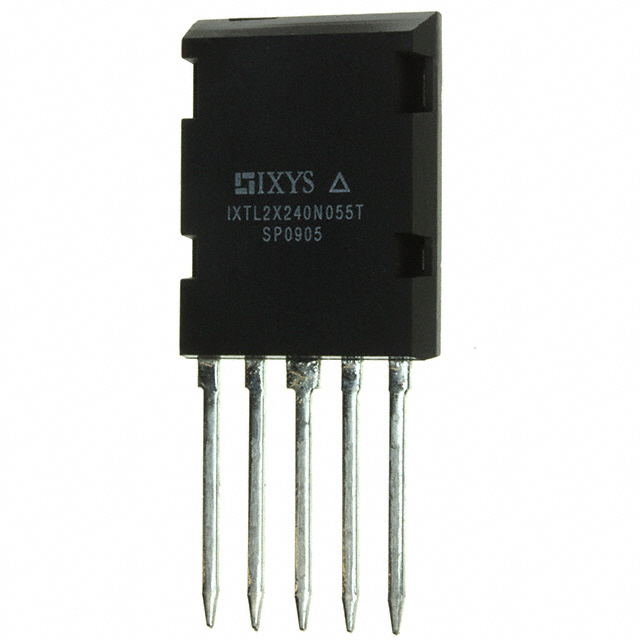

IXTL2X240N055T
MOSFET 2N-CH 55V 140A I5-PAKManufacturer: IXYS
Categories: FET, MOSFET Arrays
Quality Control: Learn More
IXYS TrenchMV™ IXTL2X240N055T is a high-performance 2 N-Channel MOSFET array designed for demanding power applications. This device features a 55V drain-source voltage (Vdss) and a continuous drain current (Id) of 140A at 25°C. The extremely low on-resistance (Rds On) of 4.4mOhm at 50A, 10V minimizes conduction losses. With a total power dissipation of 150W and a maximum junction temperature of 175°C, it is suitable for power conversion, motor control, and high-current switching applications. The ISOPLUSi5-Pak™ through-hole package offers robust thermal management. Key parameters include a gate charge (Qg) of 170nC at 10V and input capacitance (Ciss) of 7600pF at 25V.
Additional Information
Series: TrenchMV™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | ISOPLUSi5-Pak™ |
| Mounting Type | Through Hole |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 150W |
| Drain to Source Voltage (Vdss) | 55V |
| Current - Continuous Drain (Id) @ 25°C | 140A |
| Input Capacitance (Ciss) (Max) @ Vds | 7600pF @ 25V |
| Rds On (Max) @ Id, Vgs | 4.4mOhm @ 50A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 170nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | ISOPLUSi5-Pak™ |
