FMM22-05PF
MOSFET 2N-CH 500V 13A I4-PACManufacturer: IXYS
Categories: FET, MOSFET Arrays
Quality Control: Learn More
The IXYS HiPerFET™, PolarHT™ FMM22-05PF is a dual N-channel MOSFET array designed for high-performance applications. With a Drain to Source Voltage (Vdss) of 500V and a continuous Drain current (Id) of 13A at 25°C, this component offers robust power handling capabilities up to 132W. The device features a low Rds On of 270mOhm at 11A and 10V, and a Gate Charge (Qg) of 50nC at 10V, contributing to efficient switching. Input capacitance (Ciss) is rated at 2630pF at 25V. The FMM22-05PF is housed in an ISOPLUS i4-PAC™ through-hole package, facilitating thermal management. Operating temperature ranges from -55°C to 150°C. This component is suitable for use in power supply, motor control, and industrial applications.
Additional Information
Series: HiPerFET™, PolarHT™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | i4-Pac™-5 |
| Mounting Type | Through Hole |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 132W |
| Drain to Source Voltage (Vdss) | 500V |
| Current - Continuous Drain (Id) @ 25°C | 13A |
| Input Capacitance (Ciss) (Max) @ Vds | 2630pF @ 25V |
| Rds On (Max) @ Id, Vgs | 270mOhm @ 11A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 50nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 5V @ 1mA |
| Supplier Device Package | ISOPLUS i4-PAC™ |
Request a Quote
Clients Also Buy
FMM22-06PF
MOSFET 2N-CH 600V 12A I4-PAC

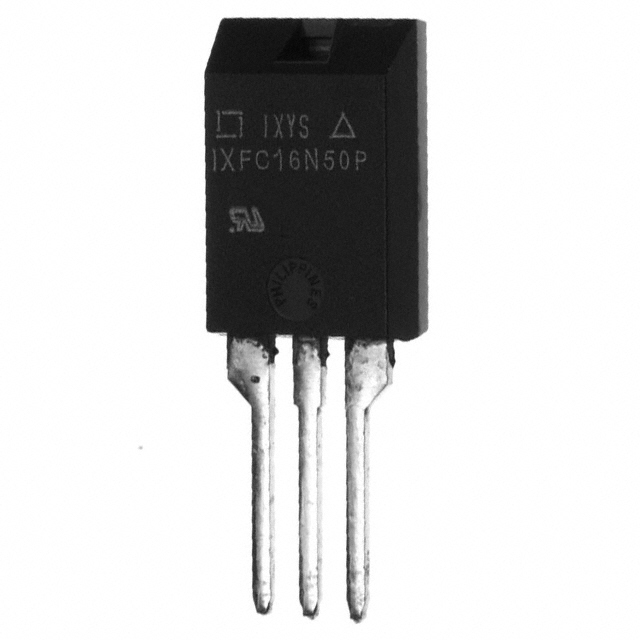

IXFC16N50P
MOSFET N-CH 500V 10A ISOPLUS220

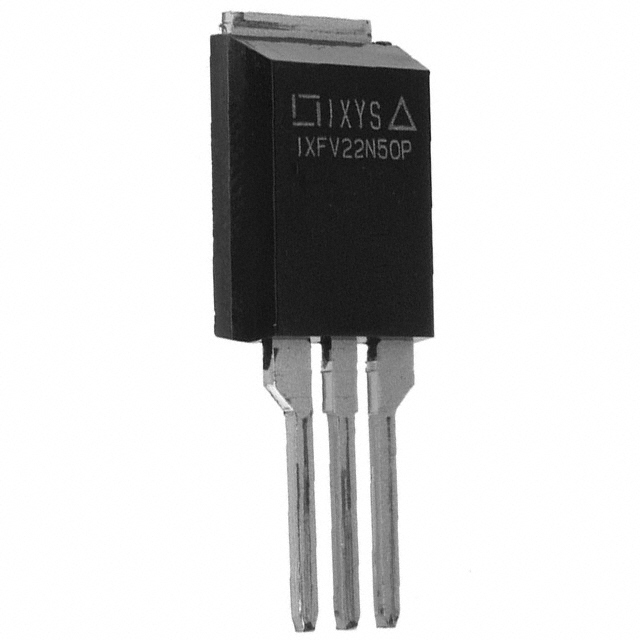

IXFV22N50P
