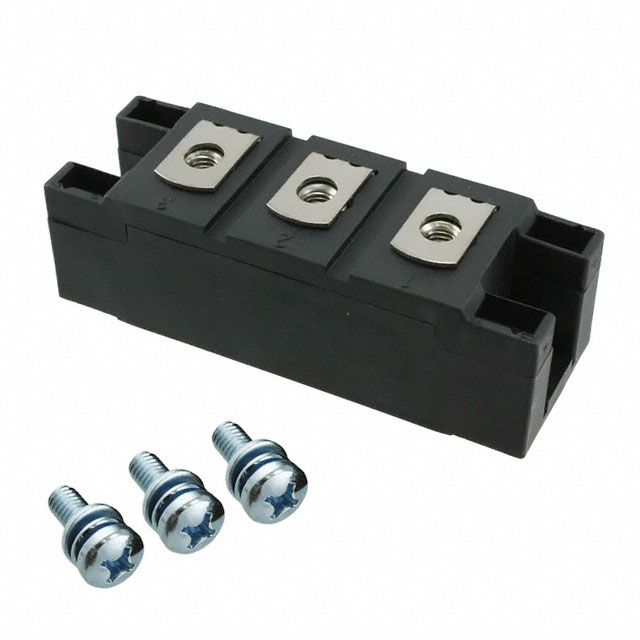

MEK350-02DA
DIODE MODULE GP 200V 356A Y4-M6Manufacturer: IXYS
Categories: Diode Arrays
Quality Control: Learn More
The IXYS MEK350-02DA is a diode module featuring a common cathode configuration with a maximum reverse voltage of 200V. This component offers a high average rectified current of 356A per diode. The forward voltage drop is specified at 1.07V at 260A. Designed for chassis mounting, it utilizes the Y4-M6 package. The reverse leakage current is a maximum of 3mA at 200V. Operating temperature ranges from -40°C to 150°C (junction). This diode module is suitable for applications requiring robust power rectification in industrial and power electronics systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Y4-M6 |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 200 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 356A |
| Supplier Device Package | Y4-M6 |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.07 V @ 260 A |
| Current - Reverse Leakage @ Vr | 3 mA @ 200 V |
