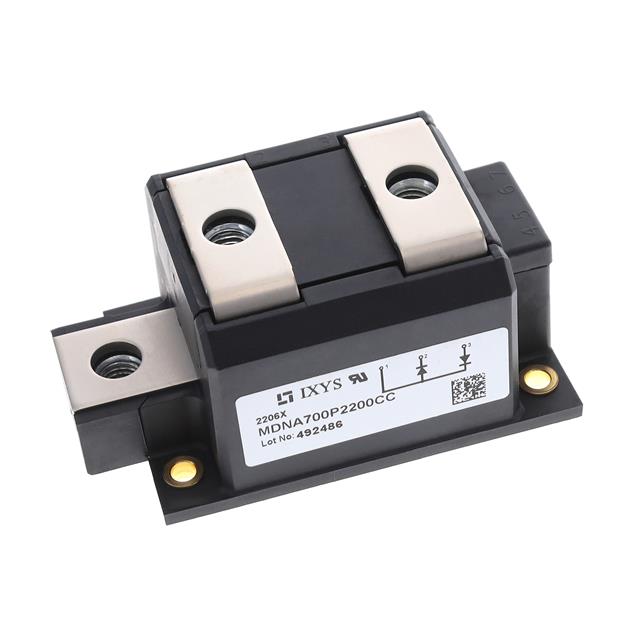

MDNA700P2200CC
DIODE MOD GP 2200V 700A COMPACKManufacturer: IXYS
Categories: Diode Arrays
Quality Control: Learn More
Diode Array 1 Pair Series Connection 2200 V 700A Chassis Mount Module
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 700A |
| Supplier Device Package | ComPack |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 2200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.14 V @ 700 A |
| Current - Reverse Leakage @ Vr | 500 µA @ 2200 V |
Request a Quote
