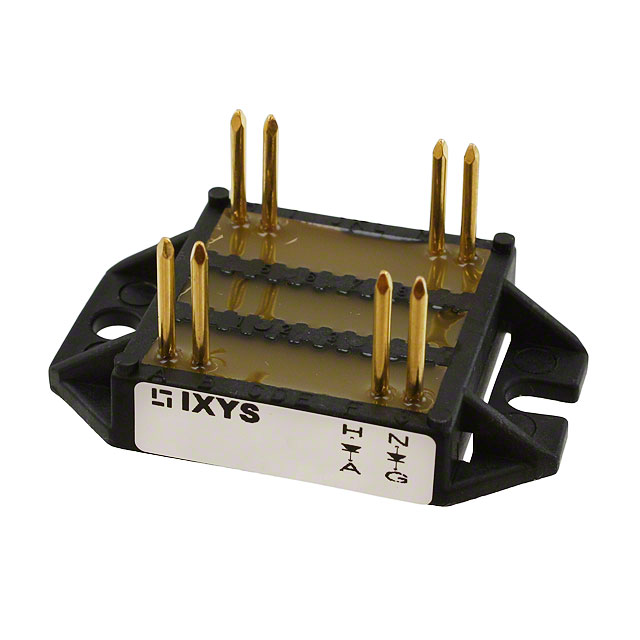

DSEI2X61-06P

DIODE MOD GP 600V 60A ECO-PAC1

Manufacturer: IXYS

Categories: Diode Arrays

Quality Control: Learn More

The IXYS DSEI2X61-06P is a FRED (Fast Recovery Epitaxial Diode) series diode array. This component features two independent diodes, each rated for a maximum DC reverse voltage of 600V and an average rectified current (Io) of 60A per diode. The forward voltage drop (Vf) is a maximum of 1.8V at 60A. With a reverse recovery time (trr) of 50 ns, this diode array is classified as fast recovery. The reverse leakage current at 600V is 200 µA. The DSEI2X61-06P is housed in an ECO-PAC1 package, designed for chassis mounting, and is supplied in box packaging. This component is utilized in various demanding applications, including power supplies, motor drives, and industrial equipment where high efficiency and reliability are critical.

Additional Information

Series: FREDRoHS Status: ROHS3 CompliantManufacturer Lead Time: 51 week(s)Product Status: ActivePackaging: BoxDatasheet:
Technical Details:
PackagingBox
Package / CaseECO-PAC1
Mounting TypeChassis Mount
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)50 ns
TechnologyStandard
Diode Configuration2 Independent
Current - Average Rectified (Io) (per Diode)60A
Supplier Device PackageECO-PAC1
Voltage - DC Reverse (Vr) (Max)600 V
Voltage - Forward (Vf) (Max) @ If1.8 V @ 60 A
Current - Reverse Leakage @ Vr200 µA @ 600 V
