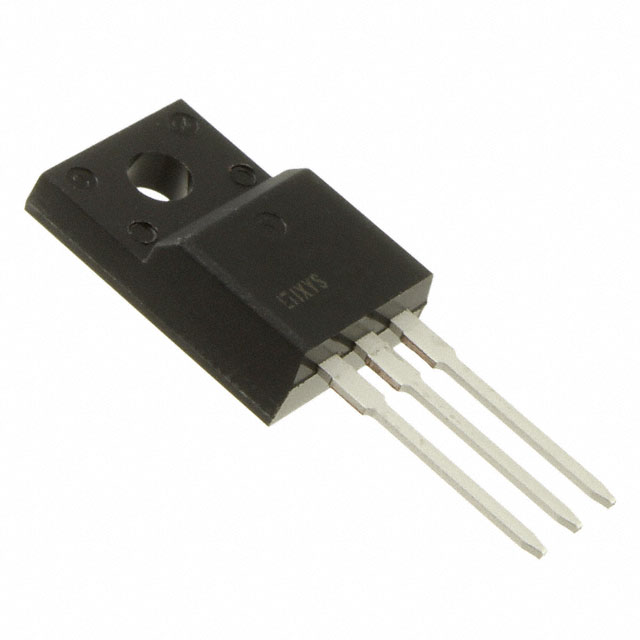

DPG20C300PN
DIODE ARR GP 300V 10A TO220ABFPManufacturer: IXYS
Categories: Diode Arrays
Quality Control: Learn More
IXYS HiPerFRED²™ diode array, part number DPG20C300PN, features a common cathode configuration with two diodes rated for 300V reverse voltage and 10A average rectified current per diode. This device offers a forward voltage drop of 1.27V at 10A and a fast reverse recovery time of 35ns. Designed for through-hole mounting in a TO-220-3 Full Pack package, it operates across a junction temperature range of -55°C to 175°C. The reverse leakage current is specified as 1 µA at 300V. This component is suitable for applications requiring efficient rectification and fast switching, commonly found in power supply units, motor control, and industrial power systems.
Additional Information
Series: HiPerFRED²™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 Full Pack |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 10A |
| Supplier Device Package | TO-220ABFP |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 300 V |
| Voltage - Forward (Vf) (Max) @ If | 1.27 V @ 10 A |
| Current - Reverse Leakage @ Vr | 1 µA @ 300 V |
