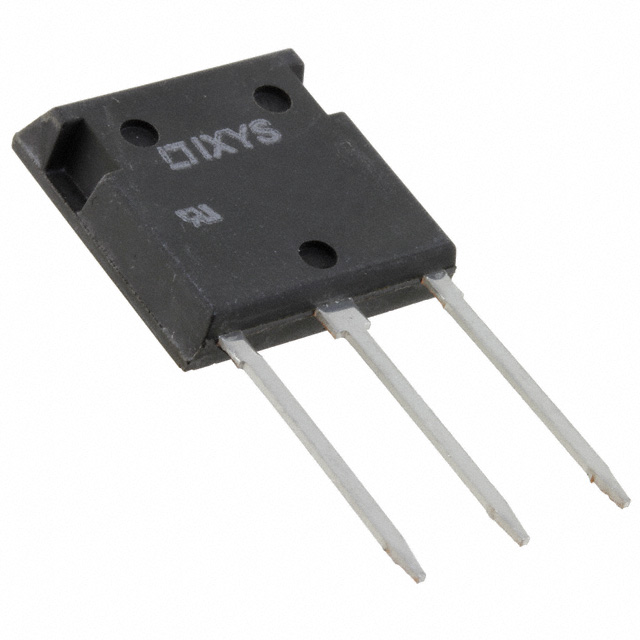

DHH55-36N1F
DIODE ARRAY GP 1800V 60A I4PACManufacturer: IXYS
Categories: Diode Arrays
Quality Control: Learn More
IXYS DHH55-36N1F is a general-purpose diode array featuring a single pair of diodes connected in series within an i4-Pac™-3 package. This through-hole component offers a maximum DC reverse voltage of 1800V and an average rectified current of 60A per diode. The device exhibits a forward voltage drop of 2.04V at 60A and a reverse leakage current of 200 µA at 1800V. With a reverse recovery time of 230 ns, it is classified as a fast recovery diode. Operating junction temperatures range from -55°C to 150°C. This diode array is suitable for applications in power conversion, motor control, and industrial power supplies.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | i4-Pac™-3 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 230 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 60A |
| Supplier Device Package | i4-PAC™ |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 1800 V |
| Voltage - Forward (Vf) (Max) @ If | 2.04 V @ 60 A |
| Current - Reverse Leakage @ Vr | 200 µA @ 1800 V |
