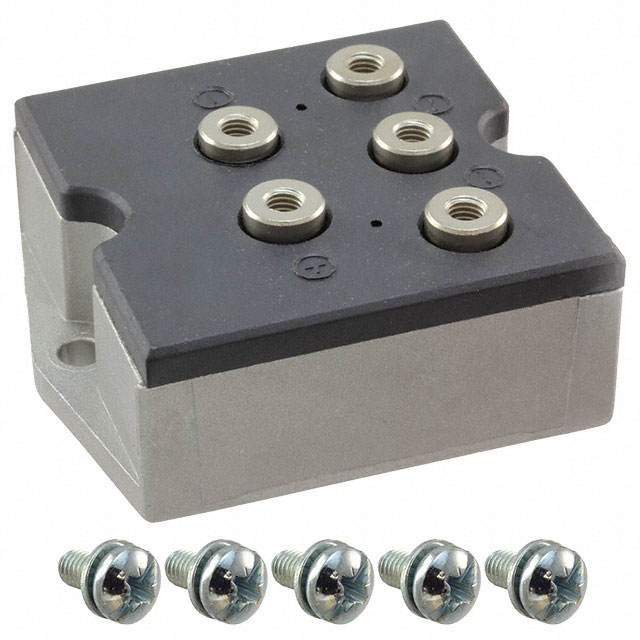

VUO55-12NO7
BRIDGE RECT 3P 1.2KV 58A PWS-BManufacturer: IXYS
Categories: Bridge Rectifiers
Quality Control: Learn More
IXYS VUO55-12NO7 is a three-phase bridge rectifier designed for high-power applications. This standard technology component offers a maximum reverse voltage of 1.2 kV and a continuous average rectified current (Io) of 58 A. With a low forward voltage drop of 1.03 V at 20 A and a minimal reverse leakage current of 100 µA at 1200 V, it ensures efficient power conversion. The VUO55-12NO7 features a PWS-B chassis mount package, facilitating robust thermal management and integration into power systems. Operating across a wide temperature range of -40°C to 150°C (TJ), this rectifier is suitable for demanding industrial environments, including power supplies, motor drives, and welding equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | PWS-B |
| Mounting Type | Chassis Mount |
| Diode Type | Three Phase |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | PWS-B |
| Voltage - Peak Reverse (Max) | 1.2 kV |
| Current - Average Rectified (Io) | 58 A |
| Voltage - Forward (Vf) (Max) @ If | 1.03 V @ 20 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 1200 V |
