VUO50-14NO3
BRIDGE RECT 3P 1.4KV 58A FO-F-BManufacturer: IXYS
Categories: Bridge Rectifiers
Quality Control: Learn More

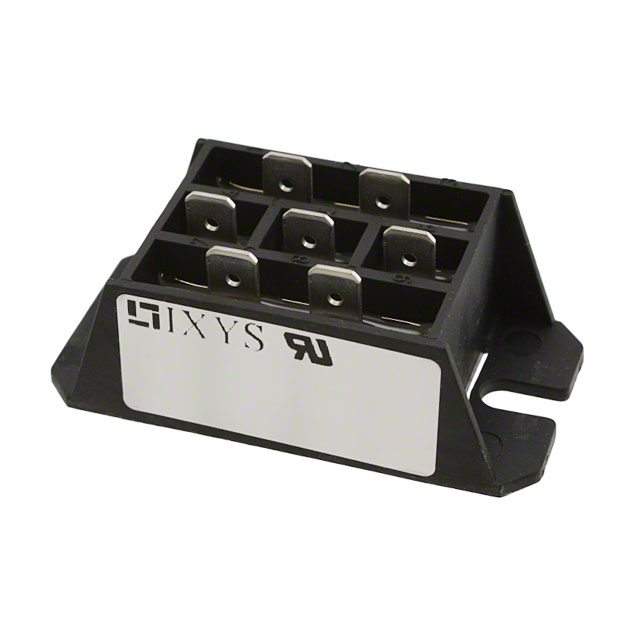

IXYS Three Phase Bridge Rectifier, part number VUO50-14NO3. This standard rectifier offers a peak reverse voltage of 1.4 kV and an average rectified current (Io) of 58 A. Featuring a forward voltage drop (Vf) of 1.9 V at 150 A, this component is designed for robust performance. The reverse leakage current at 1400 V is rated at 300 µA.
The VUO50-14NO3 utilizes a chassis mount FO-F-B package, facilitating efficient thermal management. Operating within a temperature range of -40°C to 125°C (TJ), it is suitable for demanding applications. This device finds application in various industrial sectors, including power supplies, motor drives, and welding equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | FO-F-B |
| Mounting Type | Chassis Mount |
| Diode Type | Three Phase |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Technology | Standard |
| Supplier Device Package | FO-F-B |
| Voltage - Peak Reverse (Max) | 1.4 kV |
| Current - Average Rectified (Io) | 58 A |
| Voltage - Forward (Vf) (Max) @ If | 1.9 V @ 150 A |
| Current - Reverse Leakage @ Vr | 300 µA @ 1400 V |
