VUM24-05N
BRIDGE RECT 1P 600V 40A V1-BManufacturer: IXYS
Categories: Bridge Rectifiers
Quality Control: Learn More

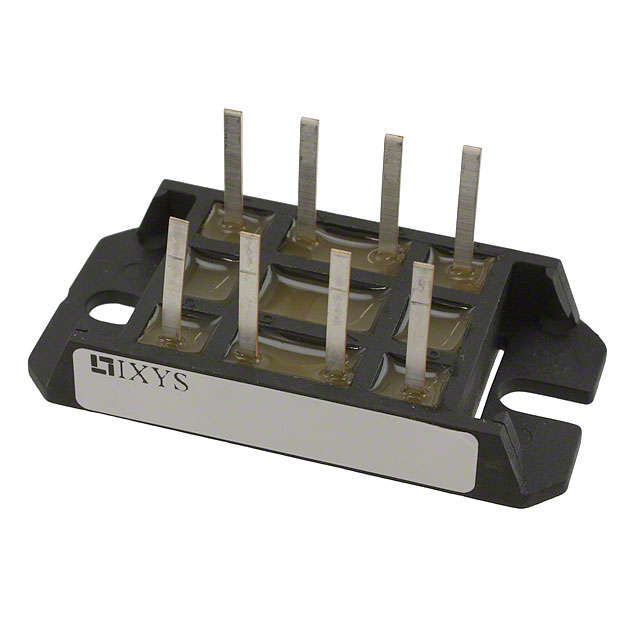

IXYS VUM24-05N is a single-phase bridge rectifier module designed for robust power factor correction applications. This component features a standard technology with a 600V peak reverse voltage rating and a continuous average rectified output current of 40A. The forward voltage drop is specified at a maximum of 1.65V at 22A. Reverse leakage current is a minimal 1.5mA at the maximum rated reverse voltage. Designed for chassis mounting, this device is housed in a V1-B-Pack package, facilitating efficient thermal management. The operating temperature range extends from -40°C to 150°C (TJ). This bridge rectifier is suitable for demanding industrial and power supply applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | V1-B-Pack |
| Mounting Type | Chassis Mount |
| Diode Type | Single Phase (PFC Module) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | V1-B-Pack |
| Voltage - Peak Reverse (Max) | 600 V |
| Current - Average Rectified (Io) | 40 A |
| Voltage - Forward (Vf) (Max) @ If | 1.65 V @ 22 A |
| Current - Reverse Leakage @ Vr | 1.5 mA @ 600 V |
