VBO68-16NO7
BRIDGE RECT 1P 1.6KV 68A ECOPAC1Manufacturer: IXYS
Categories: Bridge Rectifiers
Quality Control: Learn More
IXYS VBO68-16NO7 is a single-phase standard bridge rectifier designed for robust power conversion applications. This component features a maximum reverse voltage rating of 1.6 kV and an average rectified forward current handling capability of 68 A. The forward voltage drop at 30 A is a maximum of 1.14 V, ensuring efficient operation. Reverse leakage current is minimal, specified at 40 µA at 1600 V.

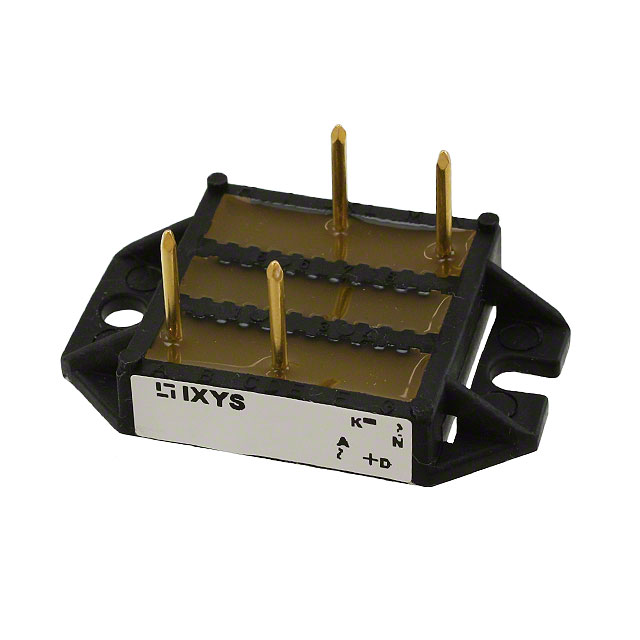

The VBO68-16NO7 is housed in the ECO-PAC1 package, facilitating chassis mounting for effective thermal management. Its operating temperature range spans from -40°C to 150°C (TJ). This rectifier is suitable for use in various industrial sectors including power supplies, motor drives, and welding equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 51 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | ECO-PAC1 |
| Mounting Type | Chassis Mount |
| Diode Type | Single Phase |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | ECO-PAC1 |
| Voltage - Peak Reverse (Max) | 1.6 kV |
| Current - Average Rectified (Io) | 68 A |
| Voltage - Forward (Vf) (Max) @ If | 1.14 V @ 30 A |
| Current - Reverse Leakage @ Vr | 40 µA @ 1600 V |
