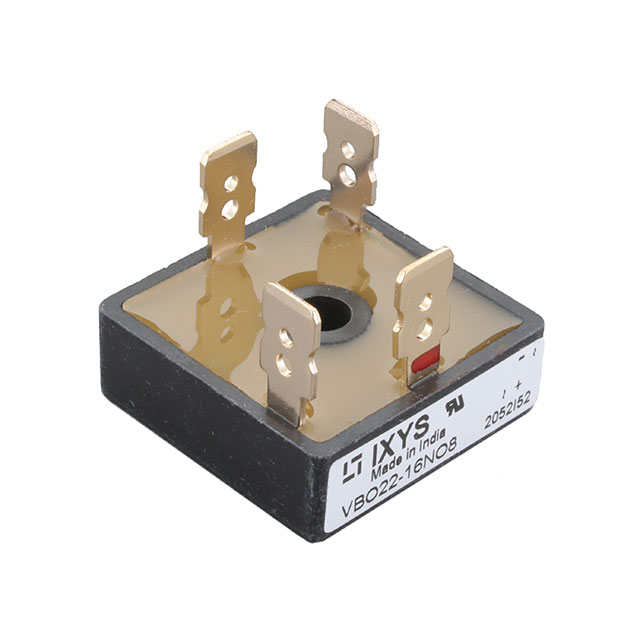

VBO22-16NO8
BRIDGE RECT 1P 1.6KV 21A FO-BManufacturer: IXYS
Categories: Bridge Rectifiers
Quality Control: Learn More
The IXYS VBO22-16NO8 is a single-phase bridge rectifier designed for robust power applications. This component features a maximum repetitive peak reverse voltage of 1.6 kV and an average rectified forward current handling capability of 21 A. With a standard recovery technology, it exhibits a forward voltage drop of 2.2 V at 150 A. The reverse leakage current is rated at 300 µA at 1600 V.
The VBO22-16NO8 utilizes QC terminals for mounting and is housed in a 4-Square, FO-B package, suitable for box packaging. Its operational temperature range extends from -40°C to 150°C (TJ). This bridge rectifier is commonly employed in power supplies, industrial automation, and renewable energy systems where high voltage blocking and efficient rectification are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 42 week(s)Product Status: ActivePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | 4-Square, FO-B |
| Mounting Type | QC Terminal |
| Diode Type | Single Phase |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | FO-B |
| Voltage - Peak Reverse (Max) | 1.6 kV |
| Current - Average Rectified (Io) | 21 A |
| Voltage - Forward (Vf) (Max) @ If | 2.2 V @ 150 A |
| Current - Reverse Leakage @ Vr | 300 µA @ 1600 V |
