VBO13-08NO2
BRIDGE RECT 1PHASE 800V 18A FO-AManufacturer: IXYS
Categories: Bridge Rectifiers
Quality Control: Learn More

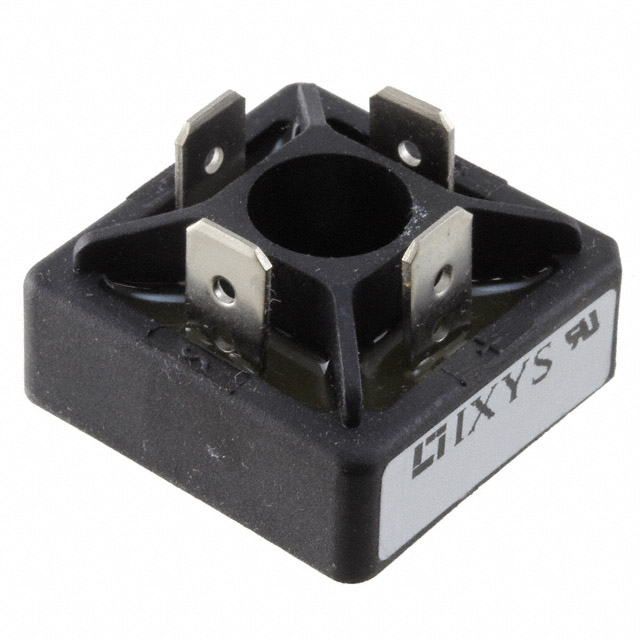

IXYS VBO13-08NO2 is a single-phase bridge rectifier designed for robust power applications. This component features a maximum repetitive peak reverse voltage of 800V and an average rectified forward current handling capability of 18A. The forward voltage drop at a continuous forward current of 55A is specified at a maximum of 1.8V. Reverse leakage current at the maximum reverse voltage (800V) is 300 µA. The rectifier utilizes standard diode technology and is housed in a 4-Square FO-A package with QC terminals for mounting. Operating temperature ranges from -40°C to 150°C. This device is commonly employed in power supplies, industrial motor control, and lighting applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-Square, FO-A |
| Mounting Type | QC Terminal |
| Diode Type | Single Phase |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | FO-A |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 18 A |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 55 A |
| Current - Reverse Leakage @ Vr | 300 µA @ 800 V |
